BS MXV
Fixed and variable speed pump units
FLOW
1.5 / 350
mc / h
HEAD
10 / 130
m
POWER
0.75 / 22x3
kW
,
,
,
Execution

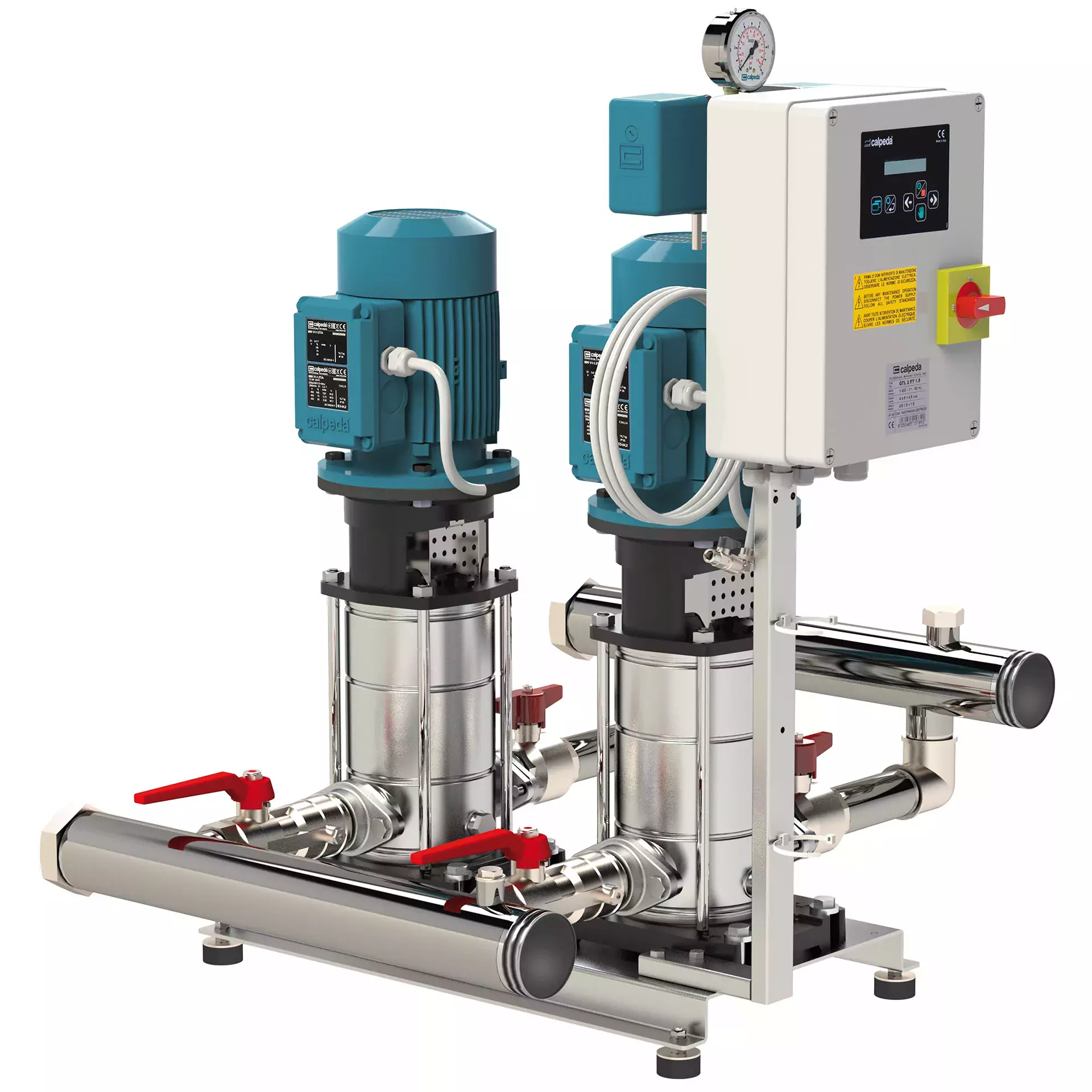

BS 1-6F Pressure boosting sets of 1 to 6 fixed speed pumps.

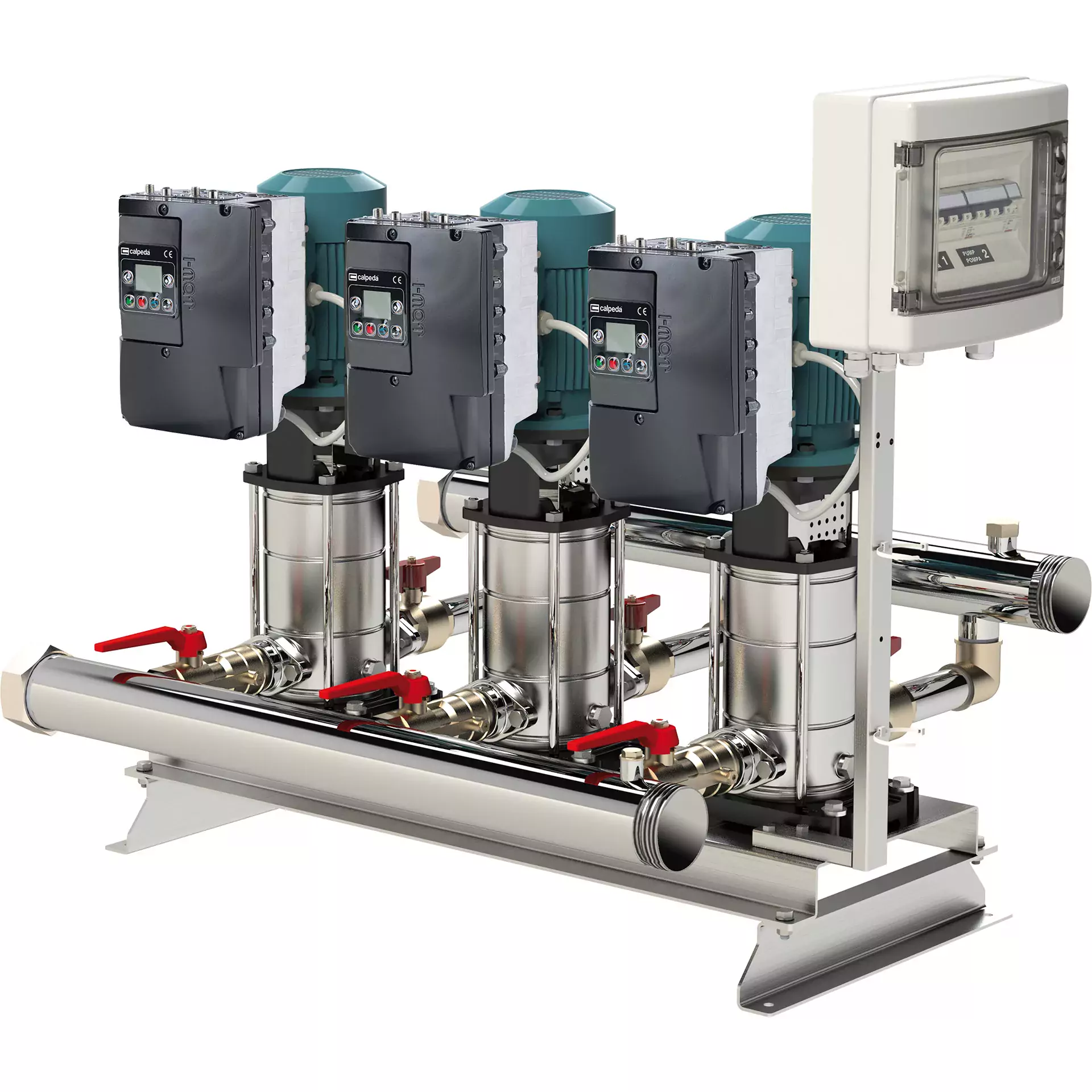

BS2-3V Pressure boosting sets 1 to 3 variable speed pumps with I-MAT.
BS1-3V Pressure boosting sets 1 to 3 variable speed pumps with EASYMAT.
BS2V 2-pump variable speed pressure boosting sets with EASYMAT2.
BS2V 2-pump variable speed pressure boosting sets with WALL.
Booster set consisting of 1 to 6 horizontal multistage pumps complete with ball valve, suction check valve and delivery ball valve.
AISI 304 suction and delivery manifolds for 2 and 3-pump units.
Arrangement for mounting G1 connection tanks.
Electrical control boards:- with microprocessor control for fixed speed pumps. Motor start-up is direct up to 5.5 kW and Y/Δ for 7.5 kW.- with inverter for variable speed pump units. The unit is complete with pressure gauge and adjustable differential pressure switches or pressure transducer.
