MXV-BE
유량
1/13
mc / h
양정
12.7 / 126.5
m
동력
1.35 / 1.8
kW
,
,
,
특징

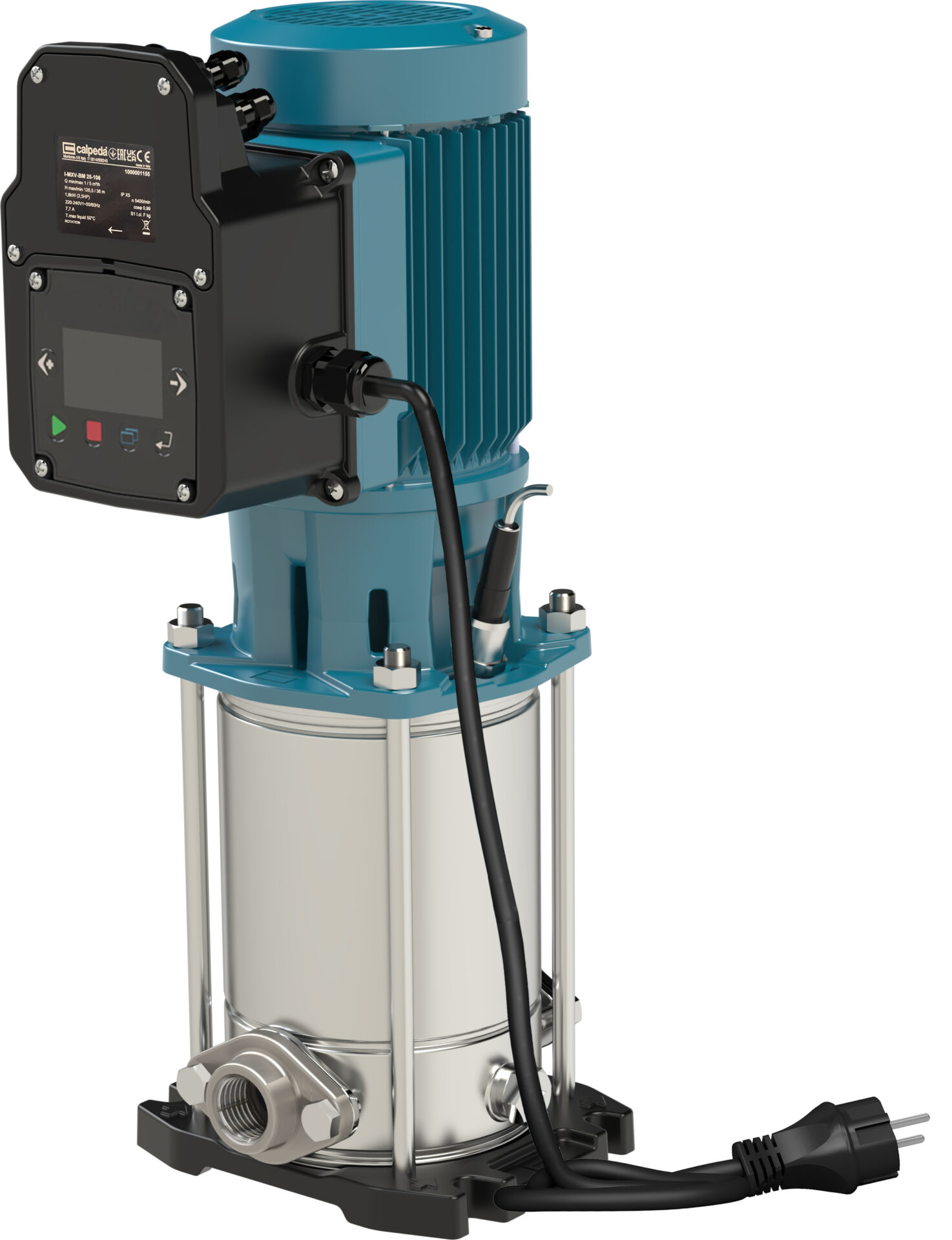

Vertical multi-stage stainless steel pumps with integrated VFD.
MXV-BEM: AISI 304 version.
MXV-BELM: AISI 316 version.
Complete with an integrated pressure transducer that maintains constant
system pressure even during the opening and closing of user outlets.

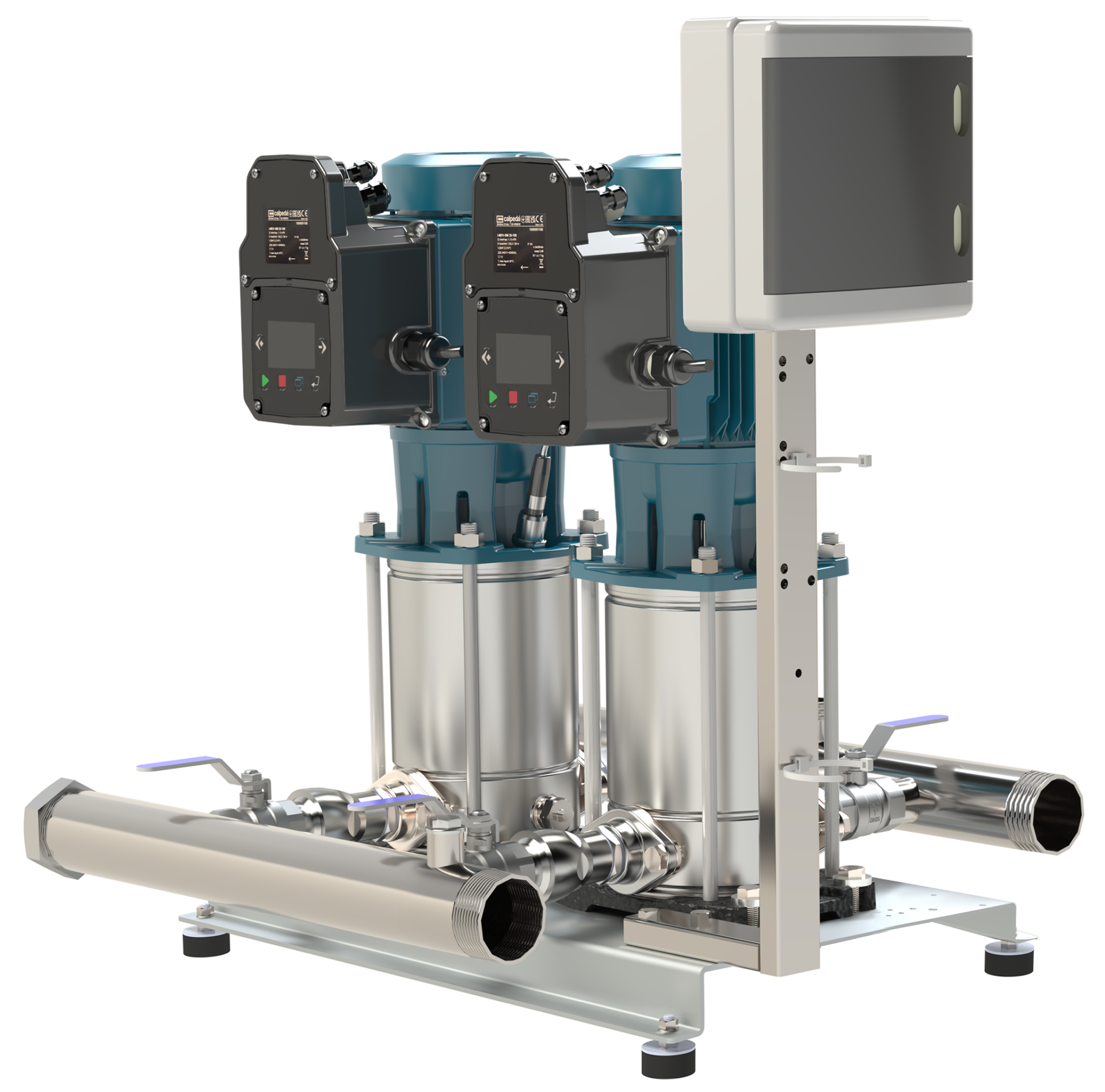

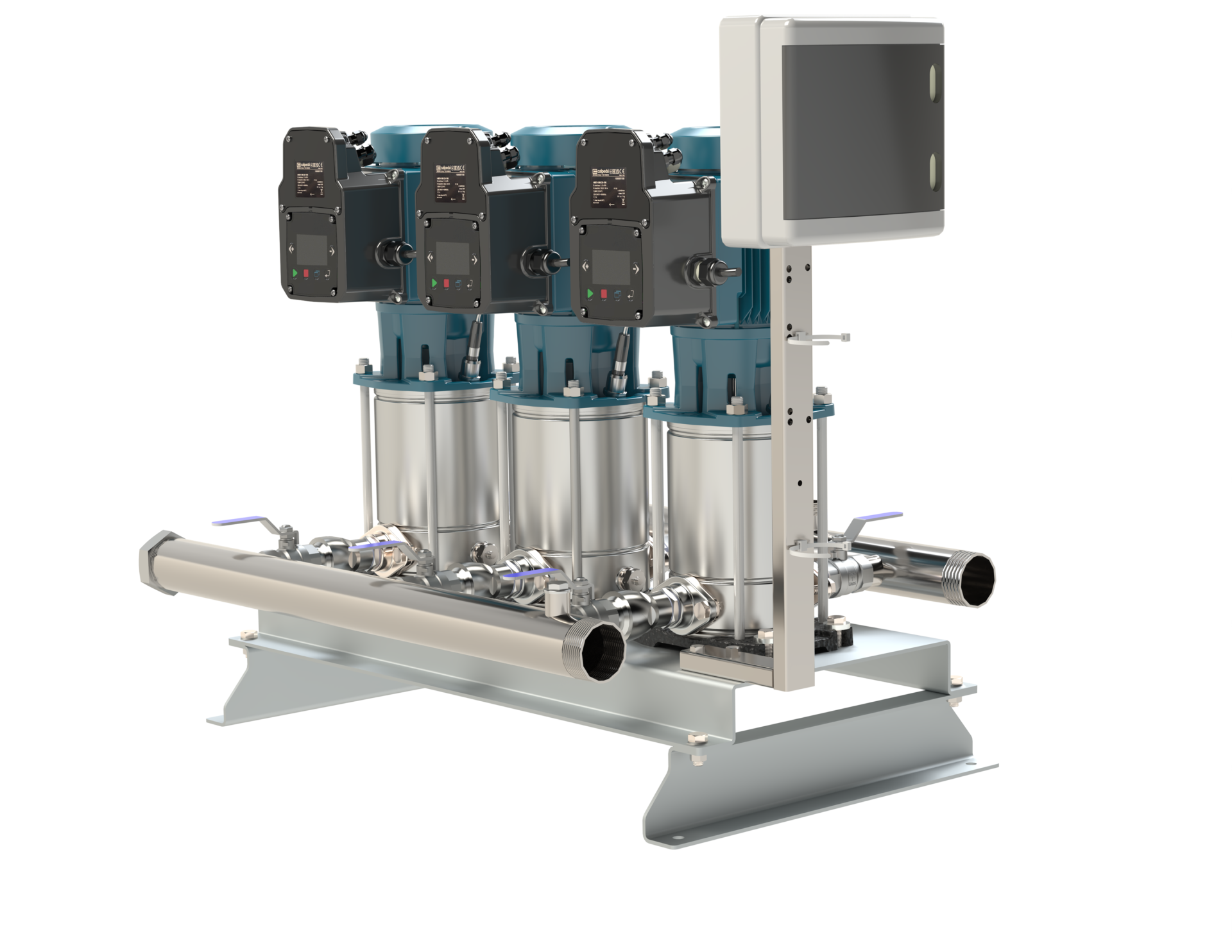

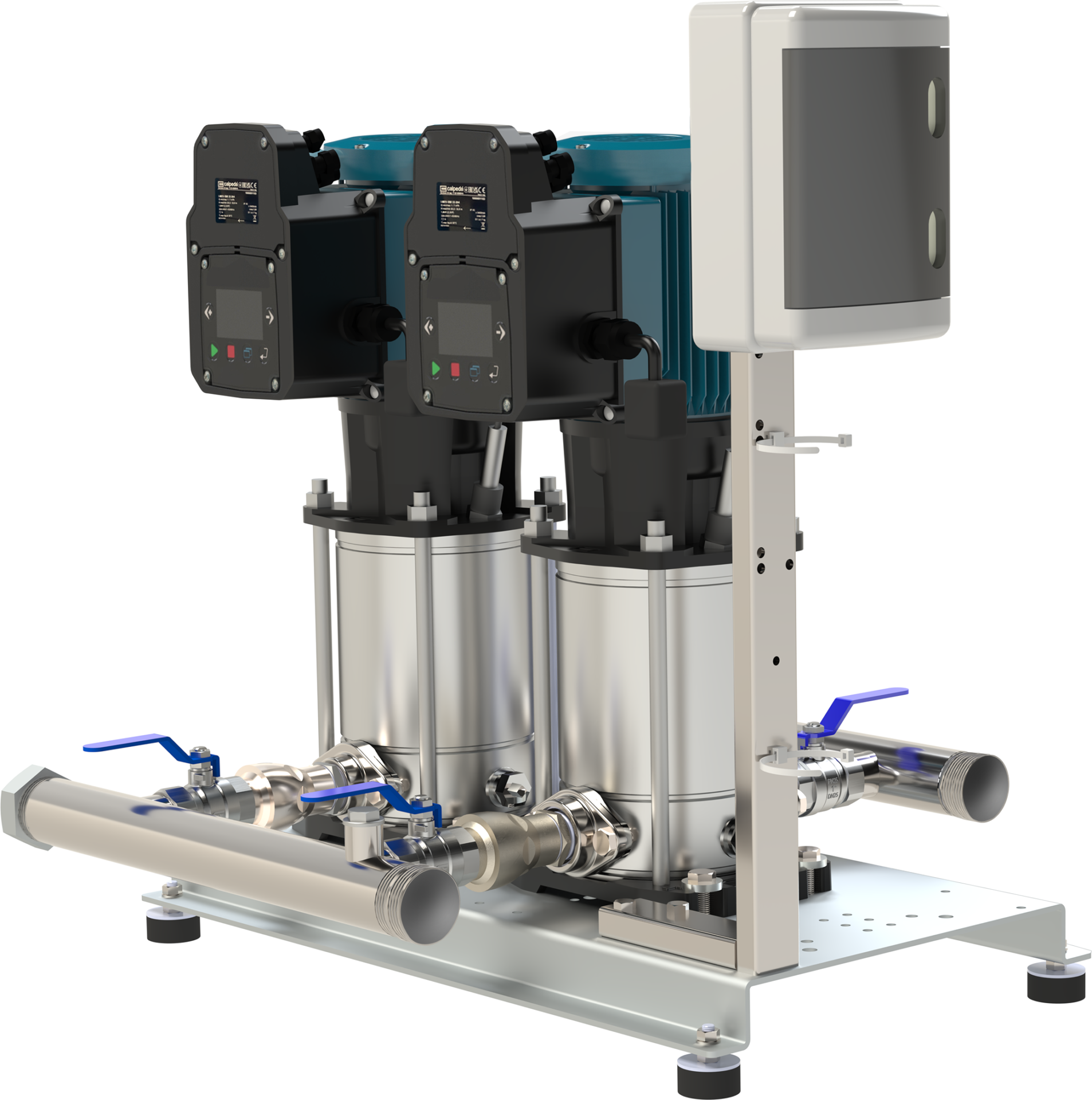

2 and 3-pump booster sets
Suction and delivery manifolds in stainless steel AISI 304.
Connections for the installation of one G 1″ connection pressure vessel
응용 분야
For water supply systems.
For clean liquids, without abrasives, which are non-aggressive for stainless steel
(with suitable seal materials, on request).
Universal pump, for domestic use, for civil and industrial applications, for garden
use and irrigation.
사용 조건
Liquid temperature from 0 °C to +40 °C.
Ambient temperature up to 40° C.
Maximum permissible pressure in pump casing: 16 bar.
Continuous duty.
모터
2-pole induction motor.
Rated speed 5400 rpm
Motor: variable speed
Frequency: 50-60 Hz
Single-phase 220-240V~50Hz/60Hz
H07RN8-F cable, 3G1.5 mm2, length 1.5 m, with CEI-UNEL 47166 plug.
Insulation class F.
Protection IP X5.
– Constructed in accordance with EN 60034-1, EN 60335-1, EN 60335-2-41.
