NGL

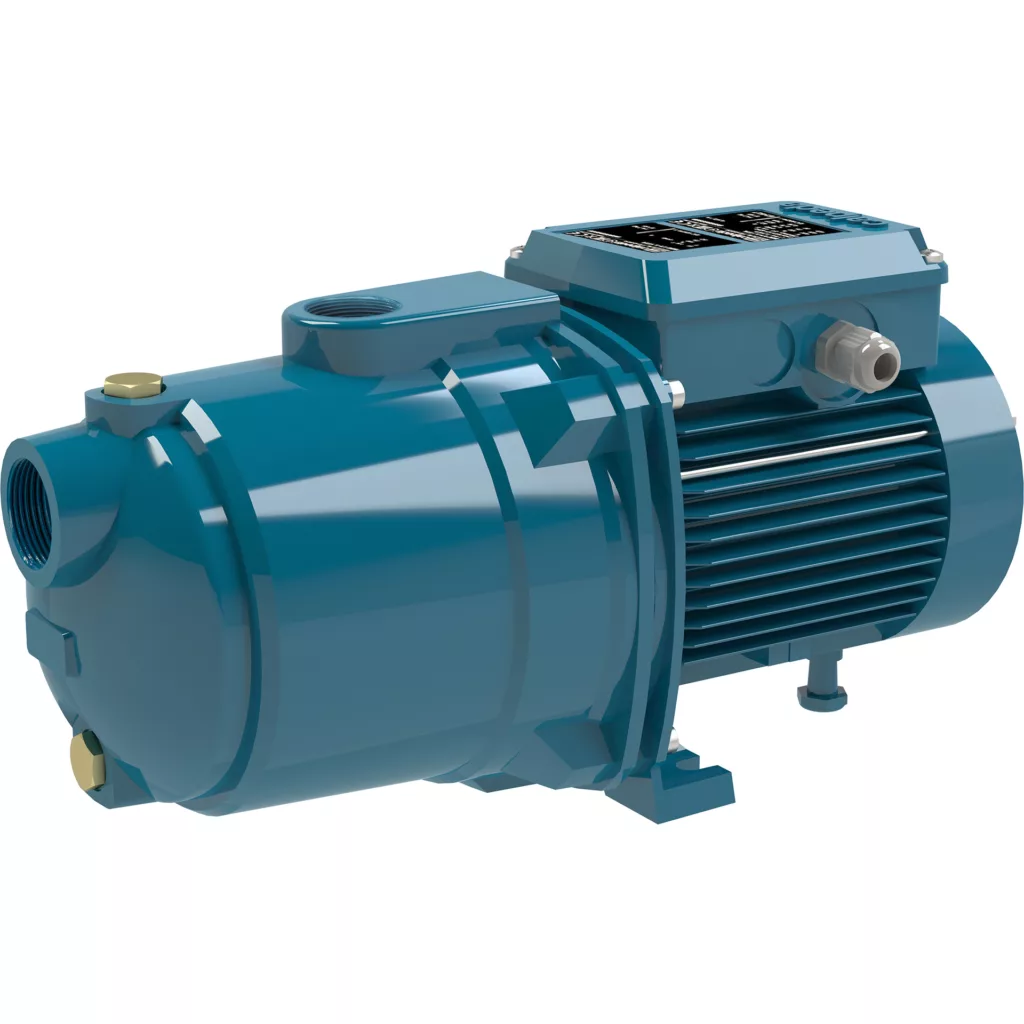

Self-priming jet pumps
FLOW
0.3 / 8.4
mc / h
HEAD
18 / 55.5
m
POWER
0.45 / 1.5
kW
Execution
Close-coupled self-priming shallow-well pump with built-in ejector.
Applications
For drawing water out of a well.
For lifting water containing air or other gases.
For increasing water pressure from flooded suction applications.
For increasing network pressure (follow local specifications).
For garden use.
For washing with a jet of water.
Operating conditions
Liquid temperature: 0 °C to +35 °C.
Ambient temperature up to +40 °C.
Maximum permissible pressure in the pump casing: 8 bar.
Continuous duty.
Motor
2-pole induction motor, 50 Hz (n ≈ 2800 rpm).
NGL: three-phase 230/400 V ± 10%.
NGLM: single-phase 230 V ± 10%, with thermal protector.
Capacitor inside the terminal box.
Insulation class F.
Protection IP54
IE3 efficiency class for three-phase motors (IE2 up to 0,65 kW).
Constructed in accordance with EN 60034-1. EN 60335-1, EN 60335-2-41.
