BS MPSU
Esecuzione

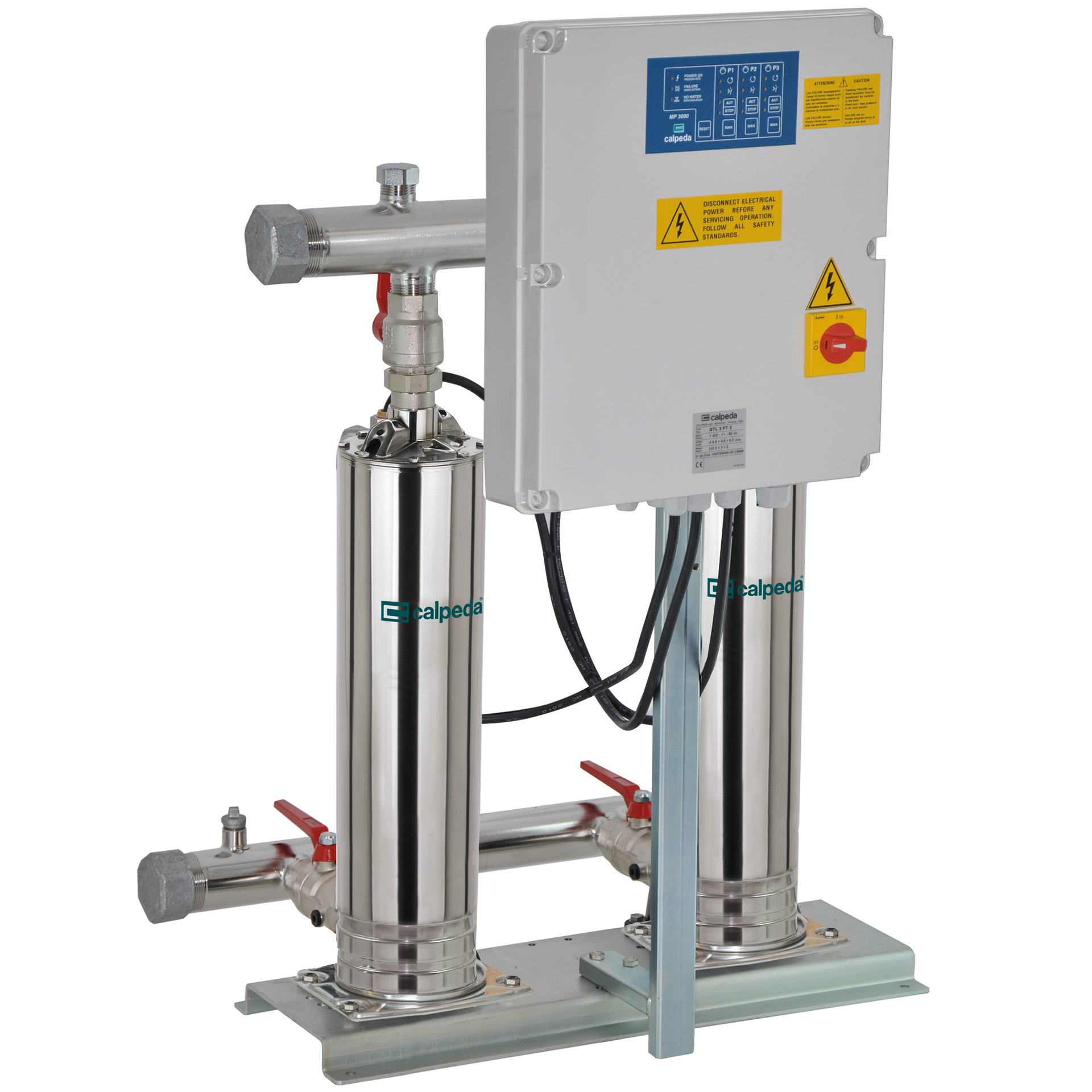

BS 2-6F Pressure boosting sets of 2 to 6 fixed speed pumps.

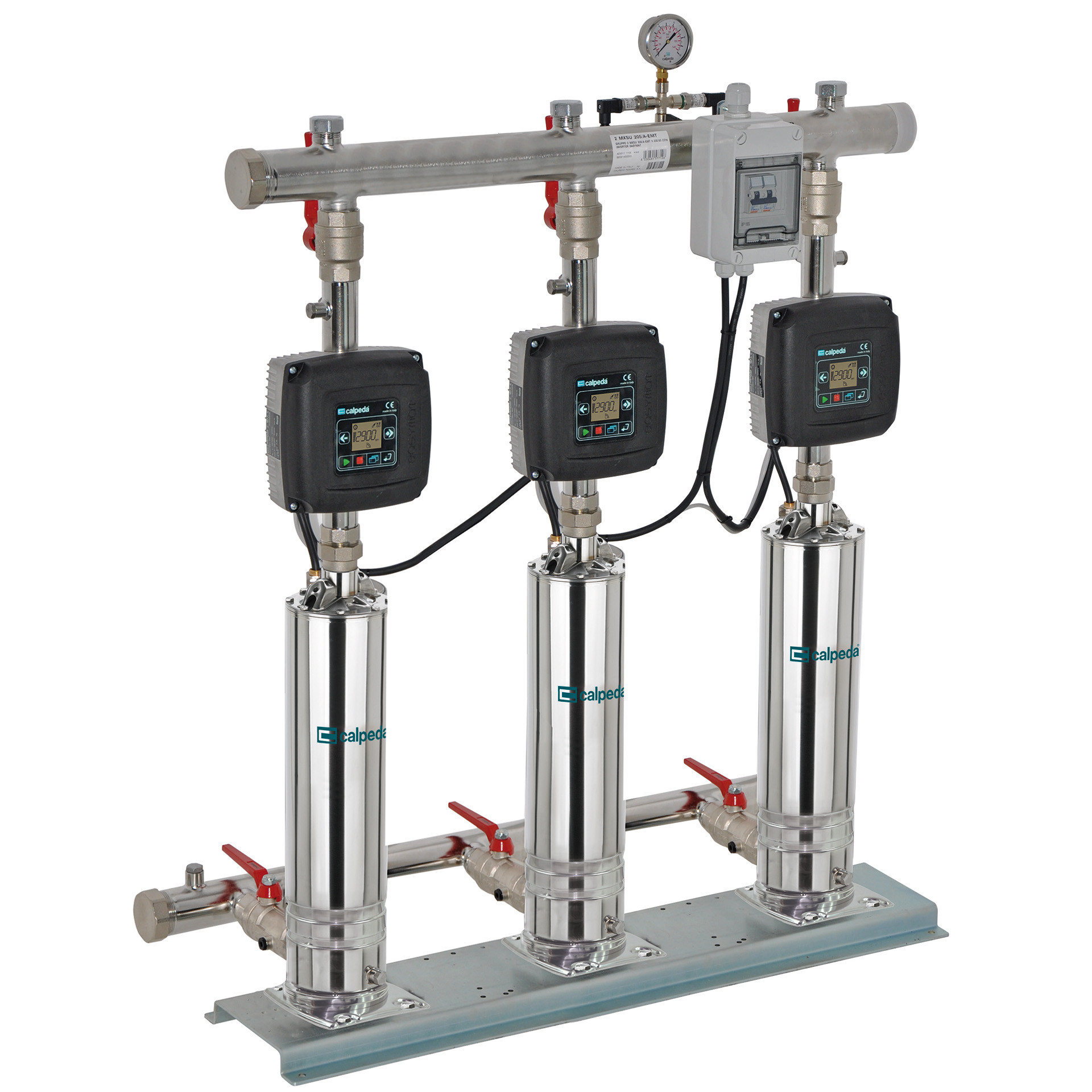

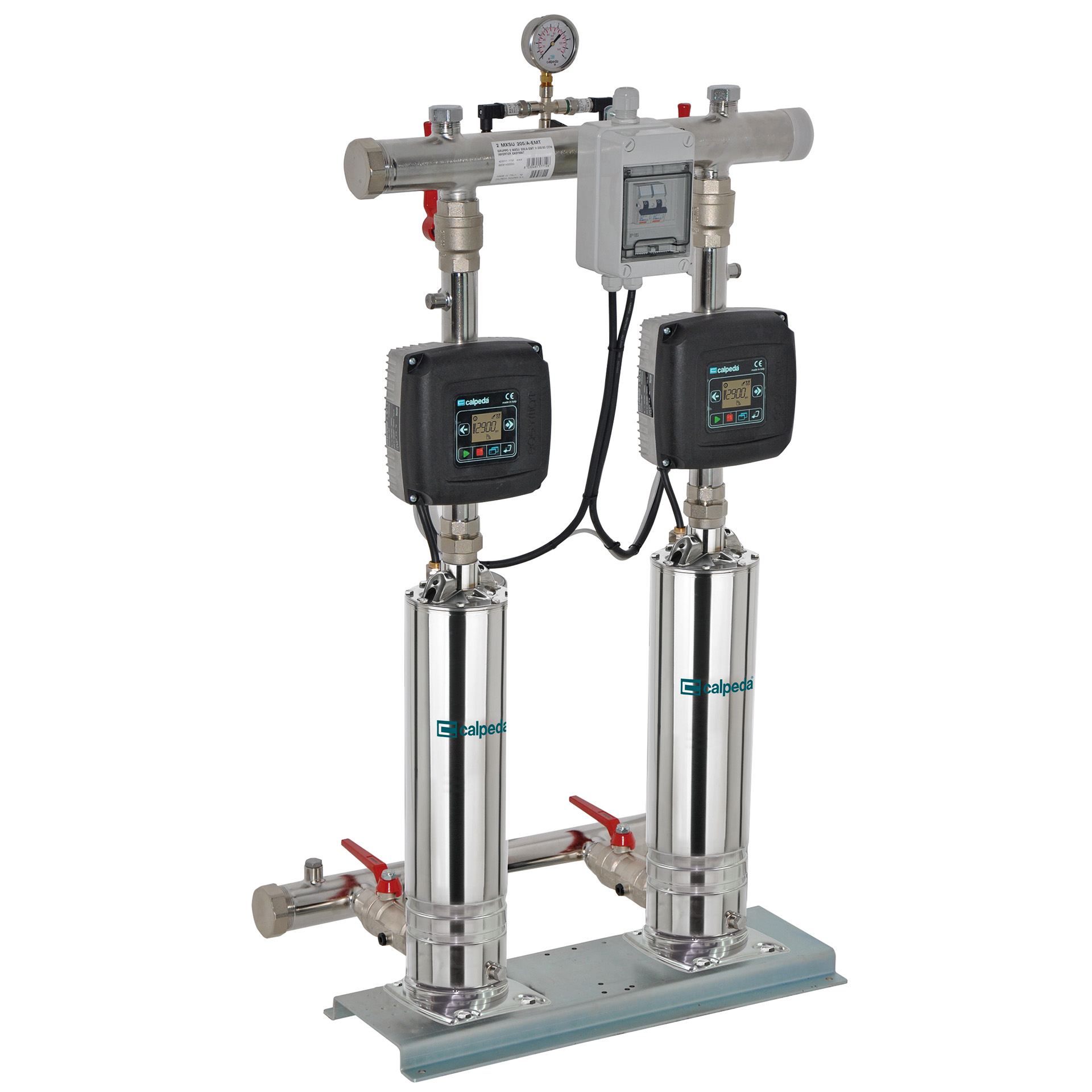

BS1-3V Pressure boosting sets of 1 to 3 variable speed pumps with EASYMAT.
Pressure boosting sets of 1 to 6 horizontal multistage pumps complete with ball valve, non-return valve on suction and ball valve on discharge.
AISI 304 suction and delivery manifolds for 2 and 3-pump units.
Arrangement for mounting G1 connection tanks.
Electronic control panels:- with microprocessor control for fixed speed pumps. Motor start-up is direct up to 5.5 kW and Y/Δ for 7.5 kW.- with inverter for variable speed pump units. The unit is complete with pressure gauge and adjustable differential pressure switches or pressure transducer.
