0.48 / 2.3
mc / h
3 / 41
Peripheral close coupled electropumps
Compact, patented construction with singlepiece motor casing and pump-side wall.
Protected against water entering the motor from outside.

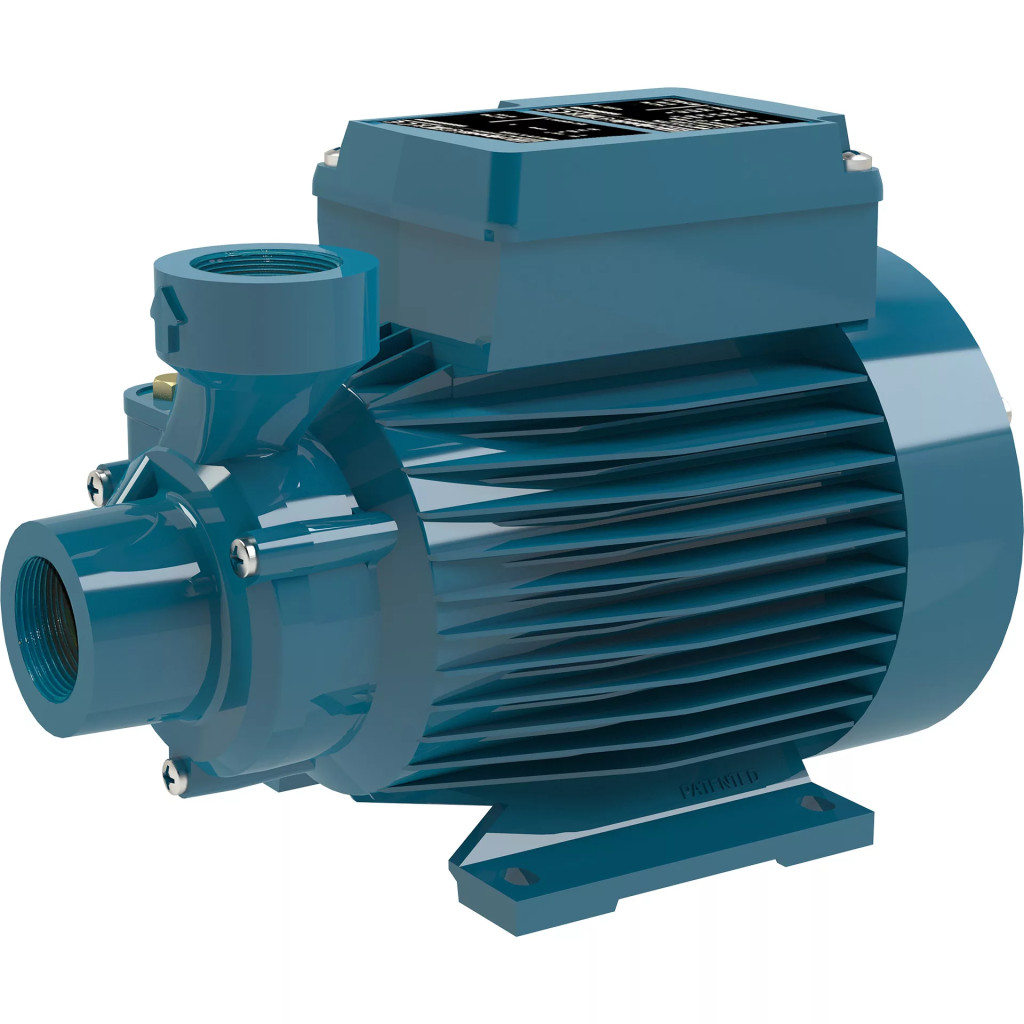

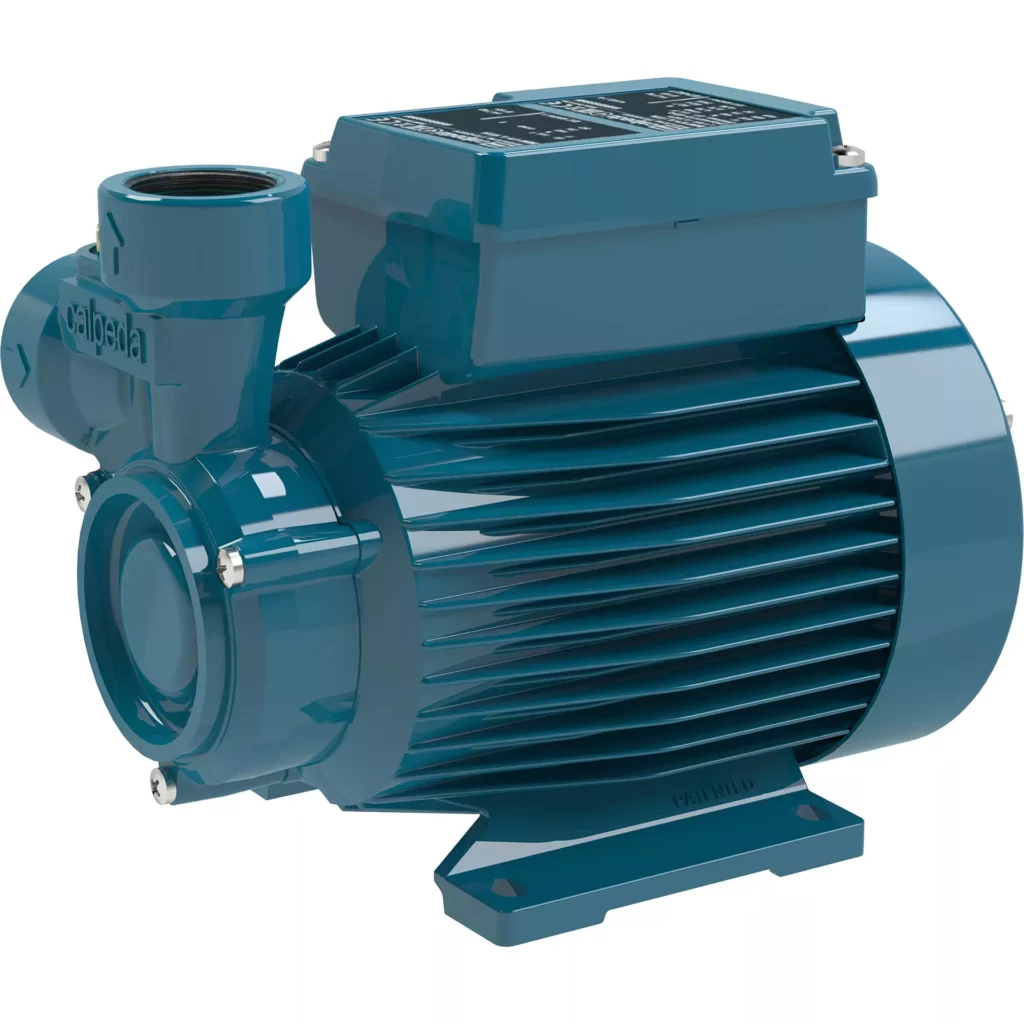

CT: version with pump casing in cast iron.

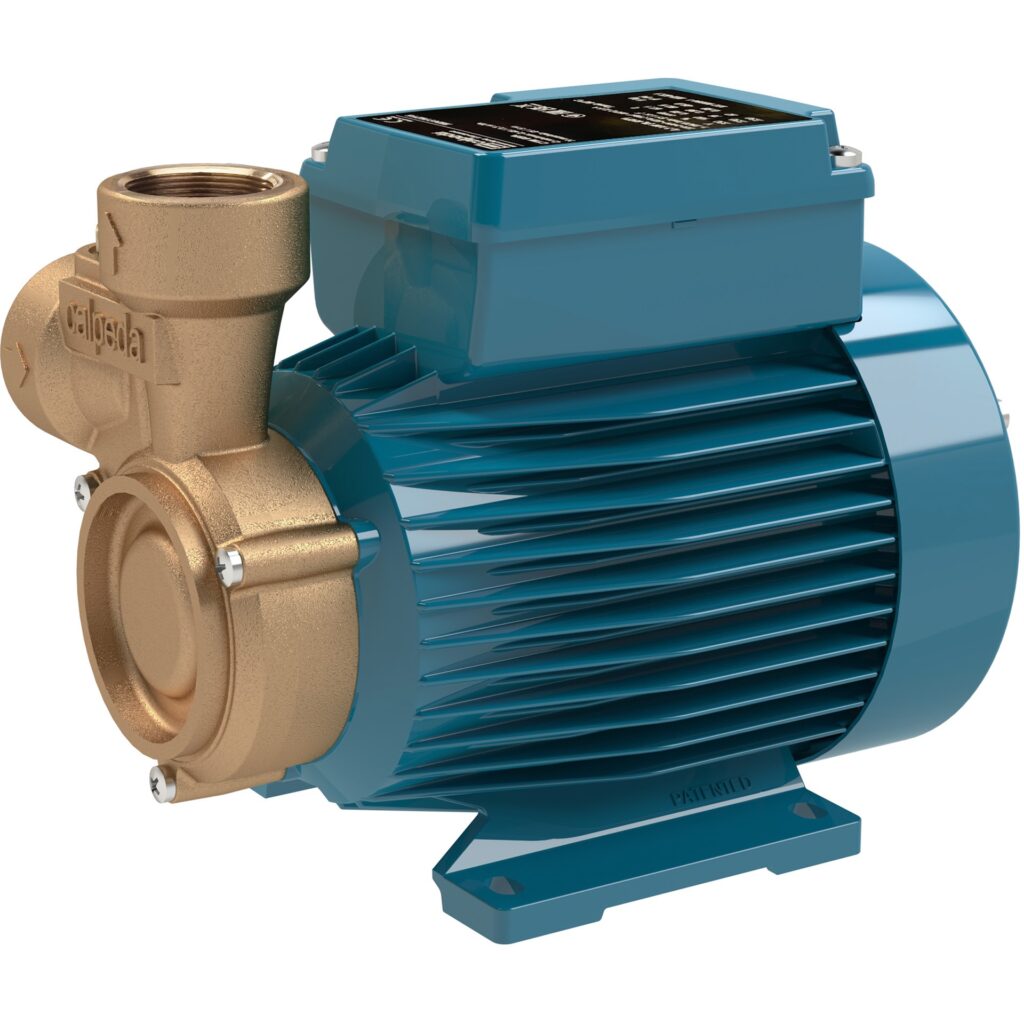

B-CT 61: versione con corpo pompa in bronzo.
The pumps are supplied fully painted.
For clean liquids without abrasives, without suspended solids, non-explosive, non-aggressive for the pump materials.
– For increasing network pressure (follow local specifications).
– For the reduced dimensions, these pumps are very well suitable to be mounted in cooling and air-conditioning machines and equipments, circulation.
Liquid temperature up to 60 °C.
Ambient temperature up to 40 °C.
Total suction lift up to 7 m.
Maximum permissible working pressure: 6 bar.
Continuous duty (S3 60% for three-phase motors).
2-pole induction motor, 50 Hz (n ≈ 2900 rpm).
CT: three-phase 230/400 V ± 10%.
CTM: single-phase 230 V ± 10%, with thermal protector.
Capacitor inside the terminal box.
Insulation class F.
IE2 efficiency class for three-phase motors
Constructed in accordance with EN 60034-1;
EN 60335-1, EN 60335-2-41.
