T, TP

Peripheral pumps

FLOW

0.06/6
mc / h

HEAD

5 / 165
m

POWER

0.33 / 7.5
kW
Execution

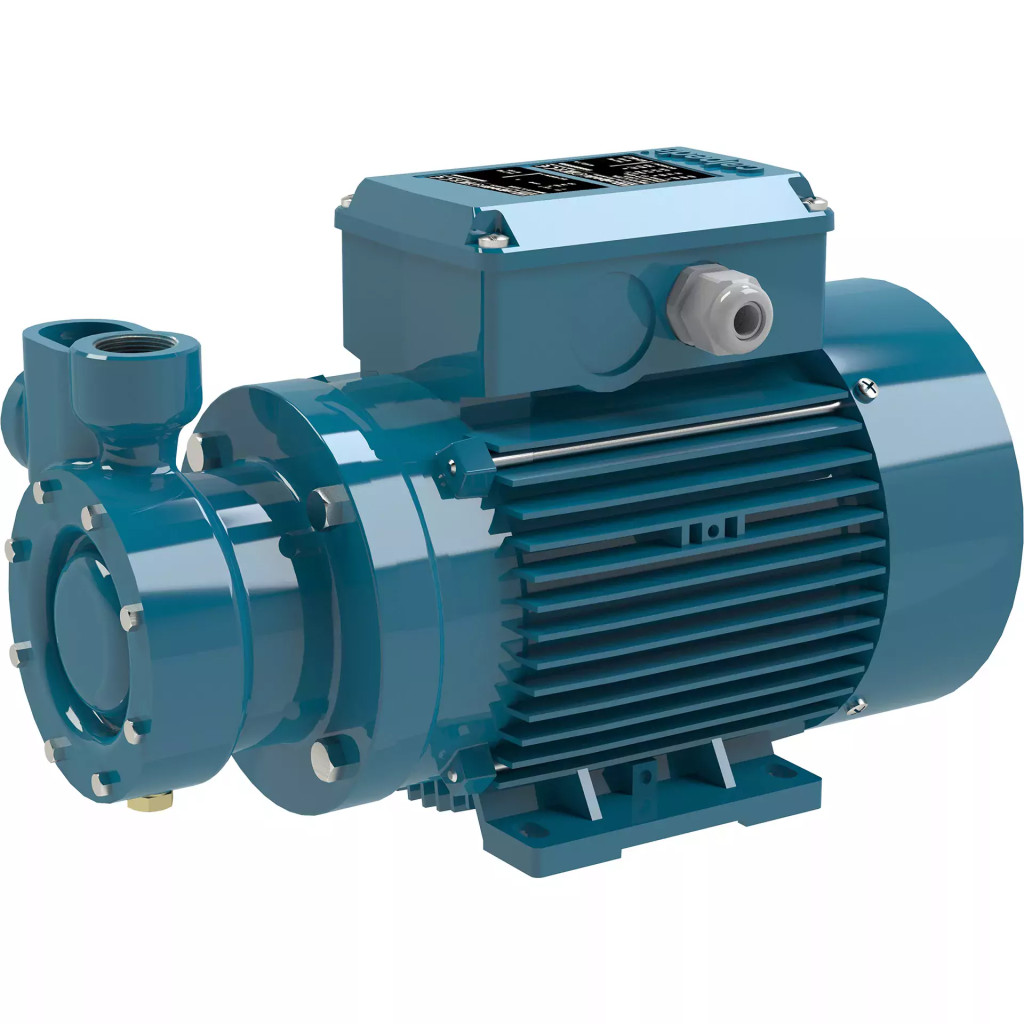

Peripheral close coupled electropumps
T, TP: version with pump casing and lantern bracket in cast iron.
BT, BTP: versione con corpo pompa e raccordo in bronzo.
The pumps are supplied fully painted.

Applications

For clean liquids without abrasives, without suspended solids, non-explosive, non-aggressive for the pump materials.
– For increasing network pressure (follow local specifications).
– For the reduced dimensions, these pumps are very well suitable to be mounted in cooling and air-conditioning machines and equipments, circulation, boiler feed.

Operating conditions

Liquid temperature from -10 °C to +90 °C.
Ambient temperature up to 40° C.
Total suction lift up to 7 m.
Maximum permissible pressure in the pump casing: 12,5 bar, (serie TP 16 bar).
Continuous duty.

Motor

2-pole induction motor, 50 Hz (n ≈ 2900 rpm).
T, TP: three-phase 230/400 V ± 10%.
400/690 V ± 10%, da 4 a 7,5 kW;
TM, TPM: single-phase 230 V ± 10% with thermal protector.
Capacitor inside the terminal box.
Insulation class F.
Protection IP54
IE3 efficiency class for three-phase motors (IE2 up to 0,65 kW).
Constructed in accordance with EN 60034-1; EN 60034-30-1. EN 60335-1, EN 60335-2-41.
