Variable speed pressure boosting system with integrated control
2 / 16,8
mc / h
15 / 55

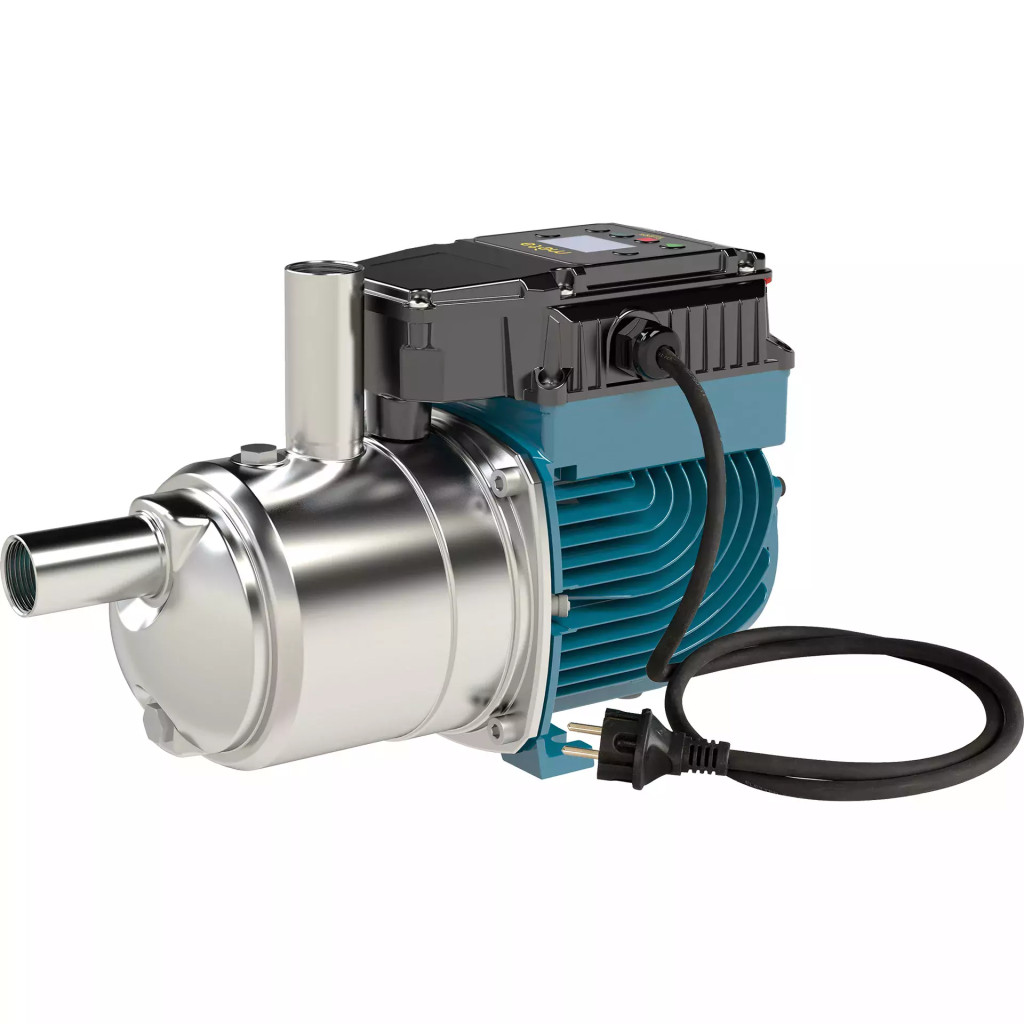

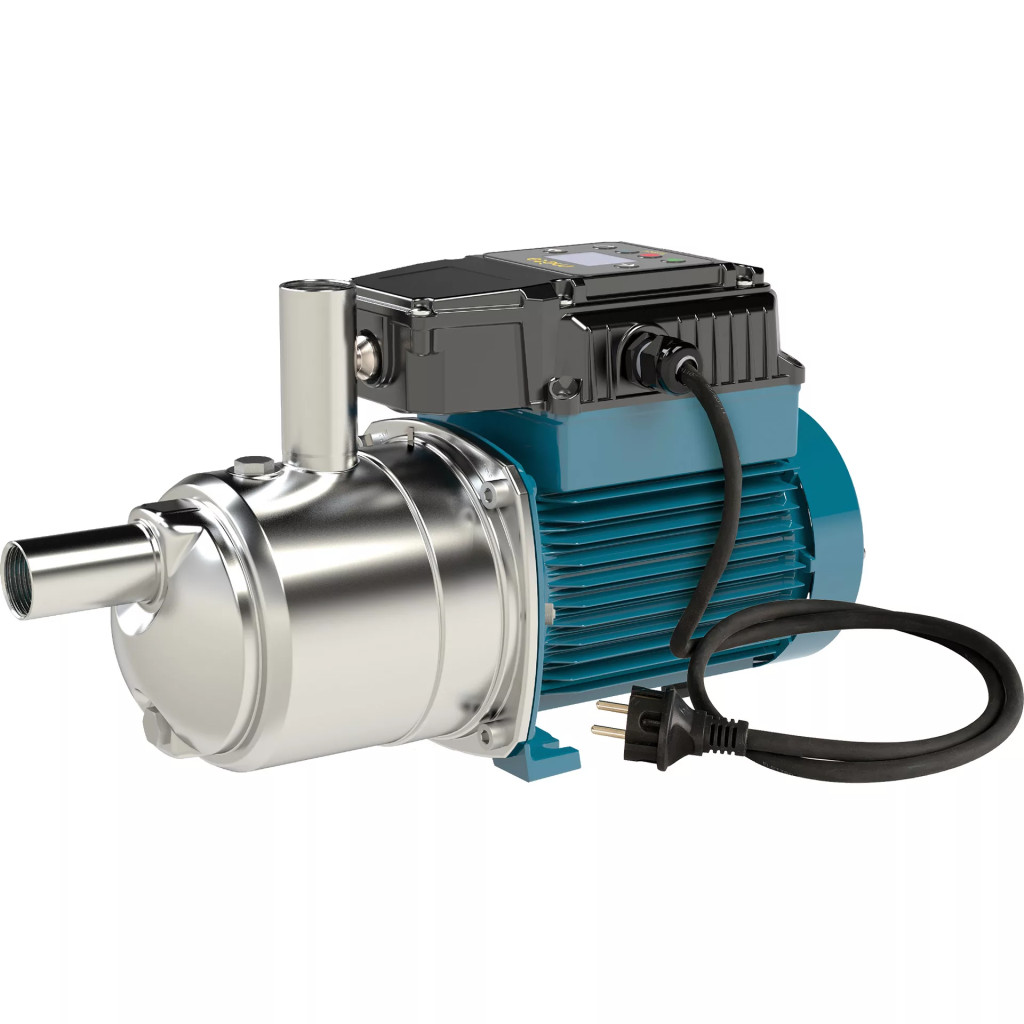

Self-priming booster set with built in frequency converter.
MÈTA is a plug and play solution, the pump is equipped with an integrated pressure transducer, an integrated check valve and a built-in pressure vessel.
The Vsd controls the start and stop of the pump and allows to keep a constant pressure.

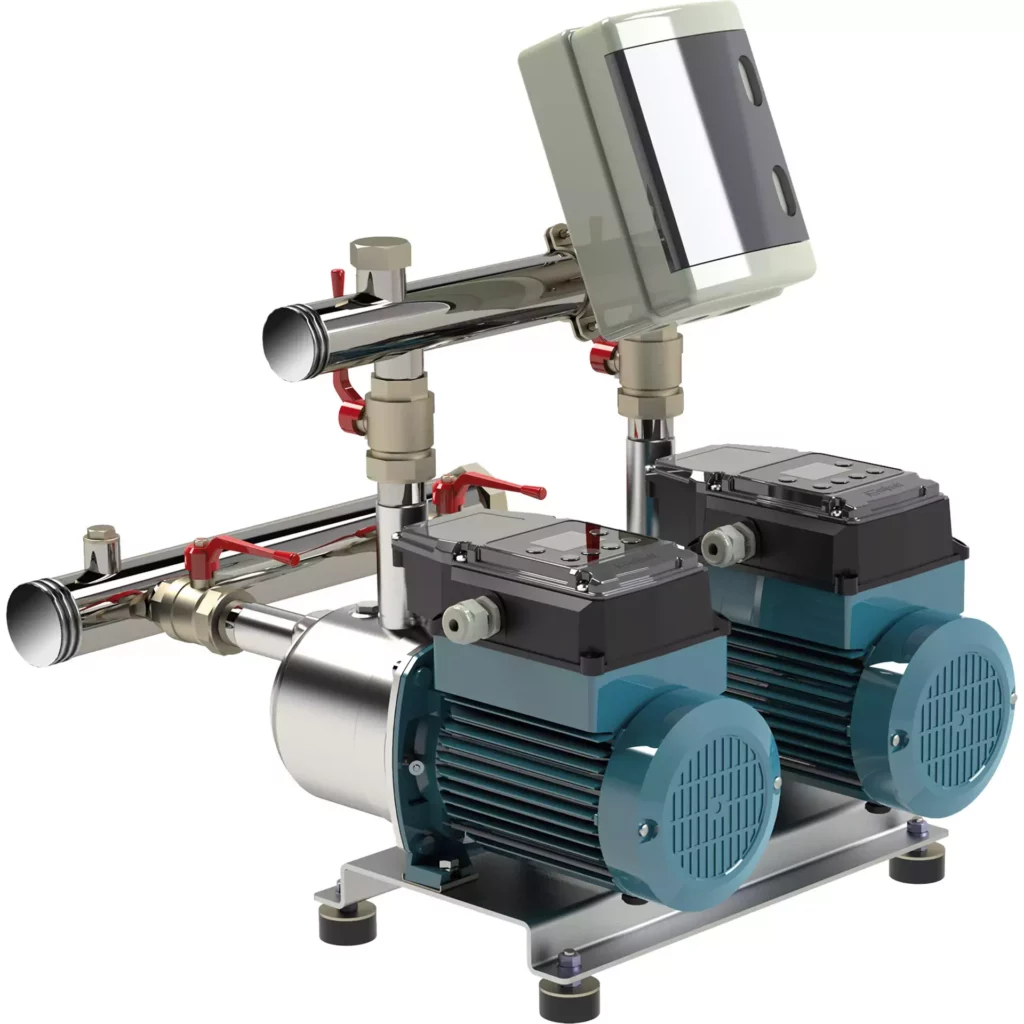

Boosting sets with 2 pumps
Suction and delivery manifolds in stainless steel AISI 304.
Connections for the installation of one G 1″ connection pressure vessel.
For water supply systems.
For domestic use, for garden use and irrigation.
Liquid temperature: 0 °C to +35 °C.
Ambient temperature up to 40° C.
Maximum permissible pressure in the pump casing: 8 bar.
2-pole induction motor.
Nominal speed 4500 rpm (5800 rpm per MÈTA SMALL)
– Motor: variable speed
Frequency: 50-60 Hz
Single-phase 220-240V~50Hz/220V~60Hz, with thermal protector.
Cable: H07RN8-F, 3G1,5 mm2, length 1,5 m, with plug
Insulation class F.
Protection IP X4.
Constructed in accordance with EN 60034-1, EN 60335-1, EN 60335-2-41.
