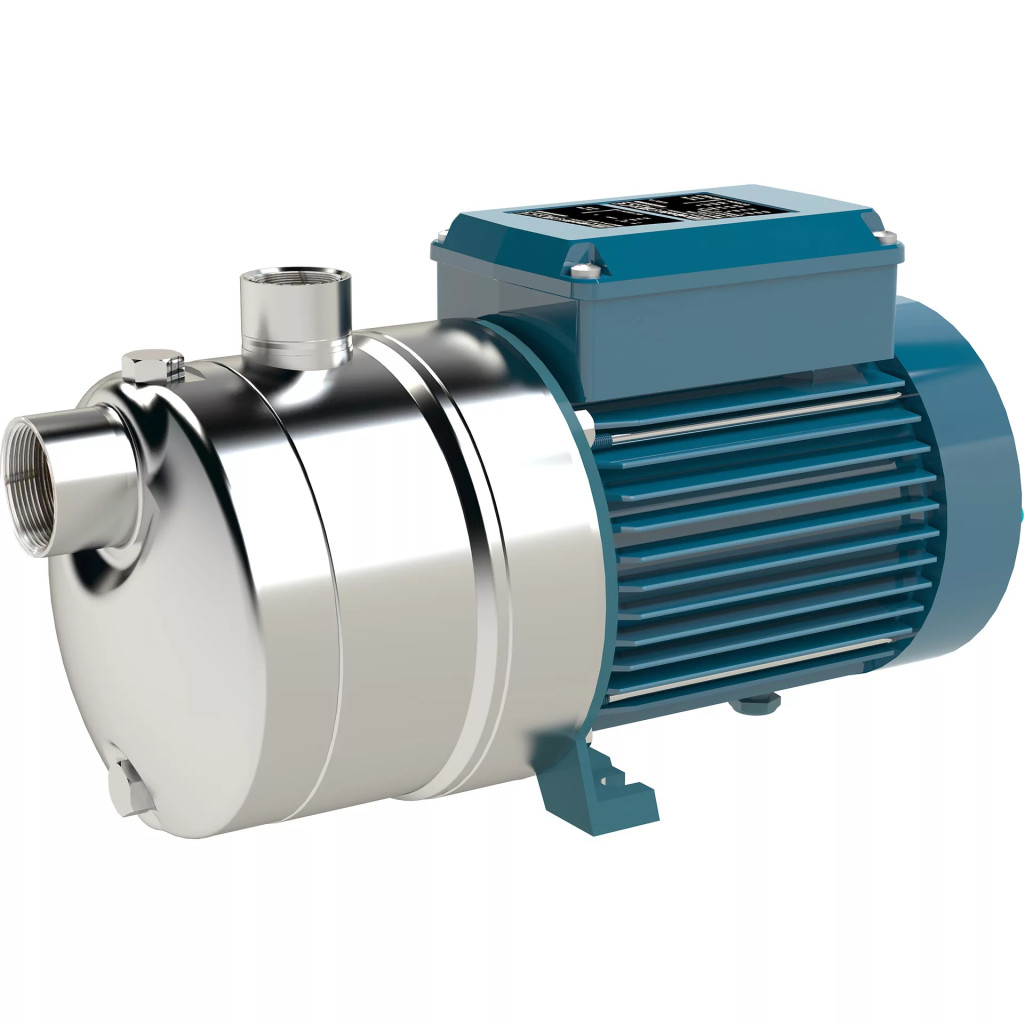

Horizontal multi-stage close coupled stainless steel pumps
Horizontal multi-stage close coupled pumps in chrome-nickel stainless steel.
Compact and robust construction, without protruding flange and with single-piece lantern bracket and base.
Single-piece barrel casing, with front suction port above pumps axis and radial delivery at top.
Filling and draining plugs on the middle of the pump, accessible from any side (like the terminal box).
MXHL: Horizontal multi-stage close coupled pumps in chromenickel-molybdenum stainless steel AISI 316L.
Version with frequency converter (on request)
For water supply systems.
For clean liquids, without abrasives, which are non-aggressive for stainless steel (with suitable seal materials, on request).
Universal pump, for domestic use, for civil and industrial applications, for garden use and irrigation.
Temperatura liquido: da -15 °C a +110 °C.
Ambient temperature up to 40° C.
Pressione finale massima ammessa nel corpo pompa: 8 bar, 10 bar per MXH 20, 32, 48.
2-pole induction motor, 50 Hz (n ≈ 2900 rpm).
MXH: three-phase 230/400 V ± 10% up to 3 kW;
400/690 V ± 10%, da 3.7 a 7,5 kW;
MXHM single-phase single-phase 230 V ± 10%, with thermal protector.
Capacitor inside the terminal box.
Insulation class F.
Protection IP 54.
Motor suitable for operation with frequency converter from 1,1 kW.
IE3 efficiency class for three-phase motors (IE2 up to 0,65 kW).
Constructed in accordance with EN 60034-1; EN 60034-30-1. EN 60335-1, EN 60335-2-41.
Watch the videos
I am raw html block.
Click edit button to change this html
1 / 25
mc / h
9 / 120
0.75 / 7.5
