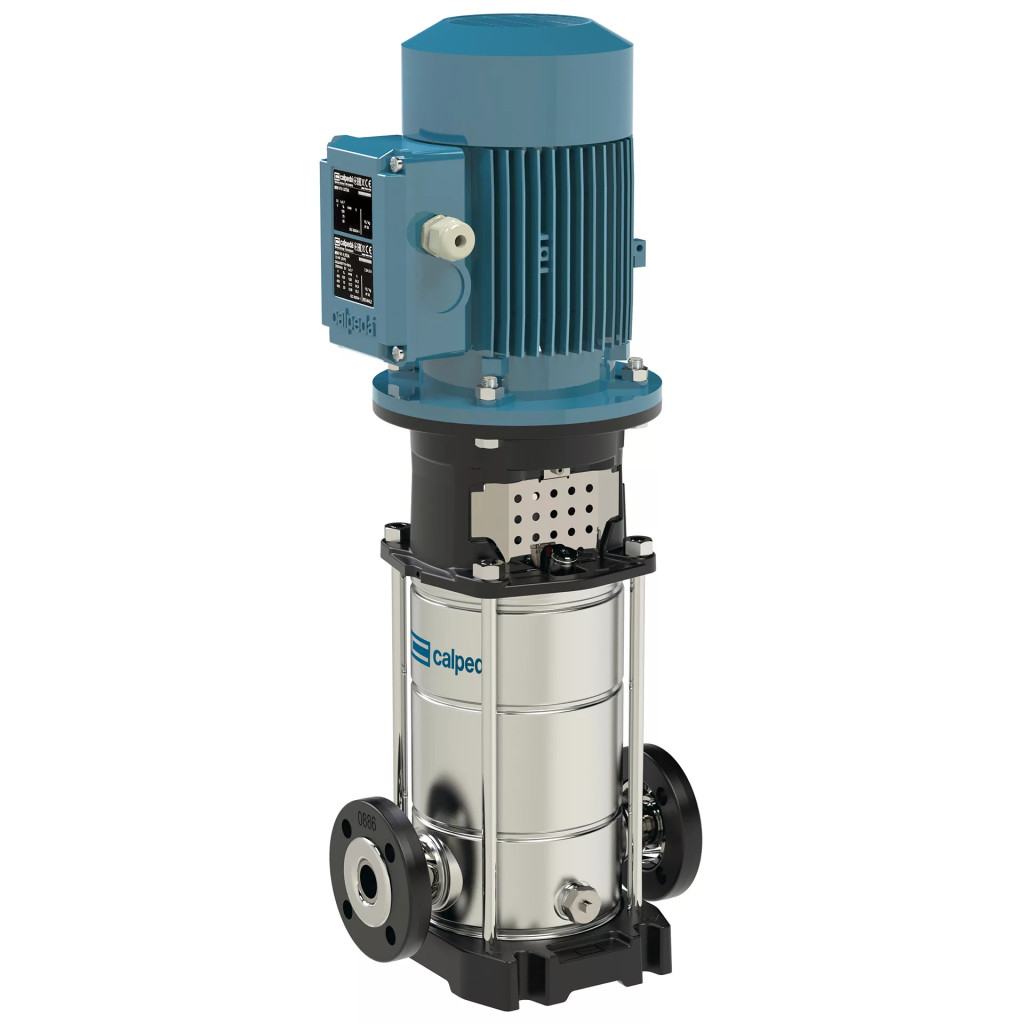

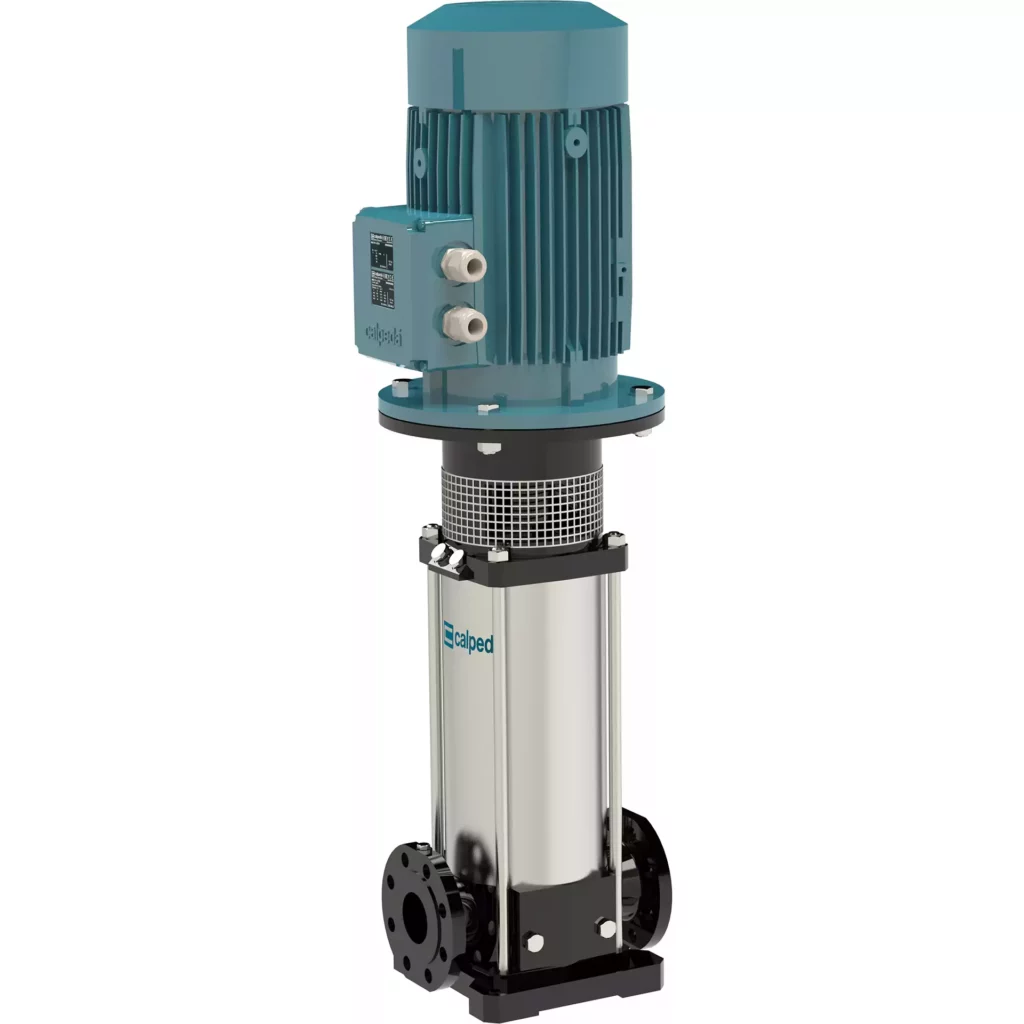

Vertical multi-stage in-line pumpsstainless steel
Vertical multi-stage pumps with suction and delivery connections of the same diameter and arranged along the same axis (in-line).
Corrosion-resistant bearing sleeves lubricated by the pumped liquid.
Removal of the mechanical seal without dismantling the motor (for MXV 25-32-40-50,100 with motors exceeding 4 KW).
A pump with thrust bearing and sleeve coupling for use of any standard motor with IM V1 construction.

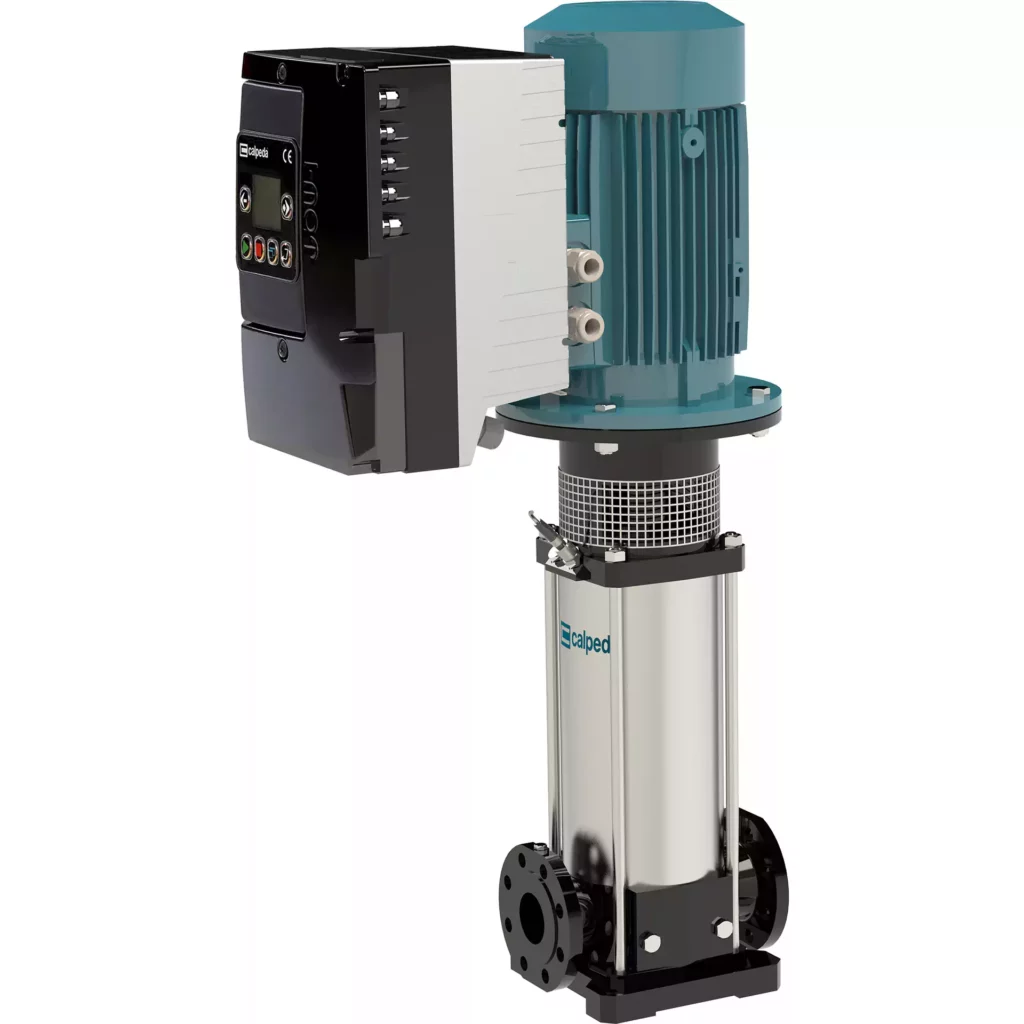

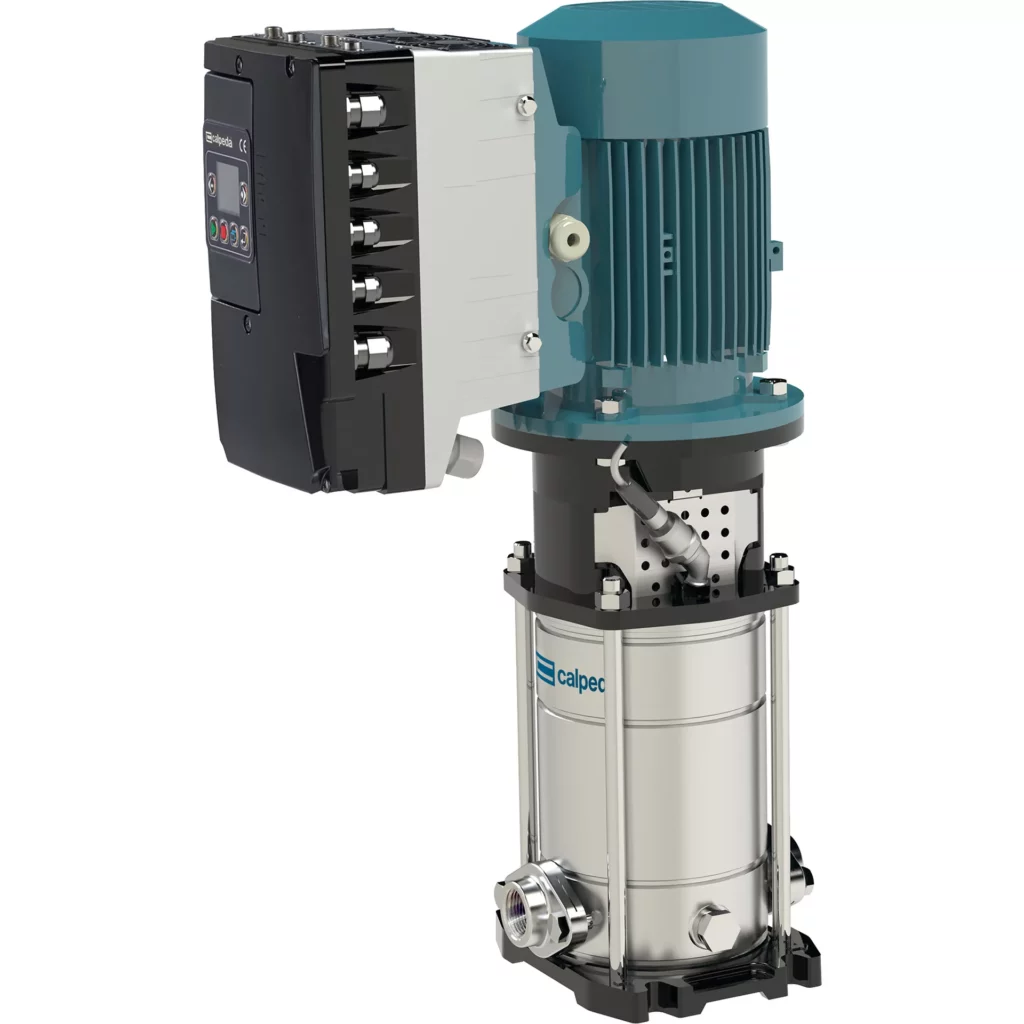

Version with frequency converter (on request)
For water supply systems.
For clean non-explosive liquids, without solid, filamentary or abrasive matter and non-aggressive for stainless steel (with adaptation of sealing materials on request).
A universal pump for civil and industrial use, for pressureboosting systems, high-pressure washing plants, irrigation, agricultural uses and sport installations.
Temperature of liquid: from -15 °C to +110 °C.
Ambient temperature up to 40° C.
Maximum permissible pressure in pump casing: 25 bar, (16 bar for pumps with oval flanges).
Standard-type: 2-pole induction motor, 50 Hz (n ≈ 2900 rpm).
Motor suitable for operation with frequency converter.
Classification scheme IE3 for three-phase motors from 0,75 kW.
Construction IM V1.
Insulation class F.
IP protection: IP55
Three-phase with rated voltage: up to 3 kW 230/400 V; from 4 kW 400/690 V.
Watch the videos
I am raw html block.
Click edit button to change this html
1 / 66
mc / h
5.5 / 68
0.33 / 7.5
1 / 25
mc / h
9 / 120
0.75 / 7.5
