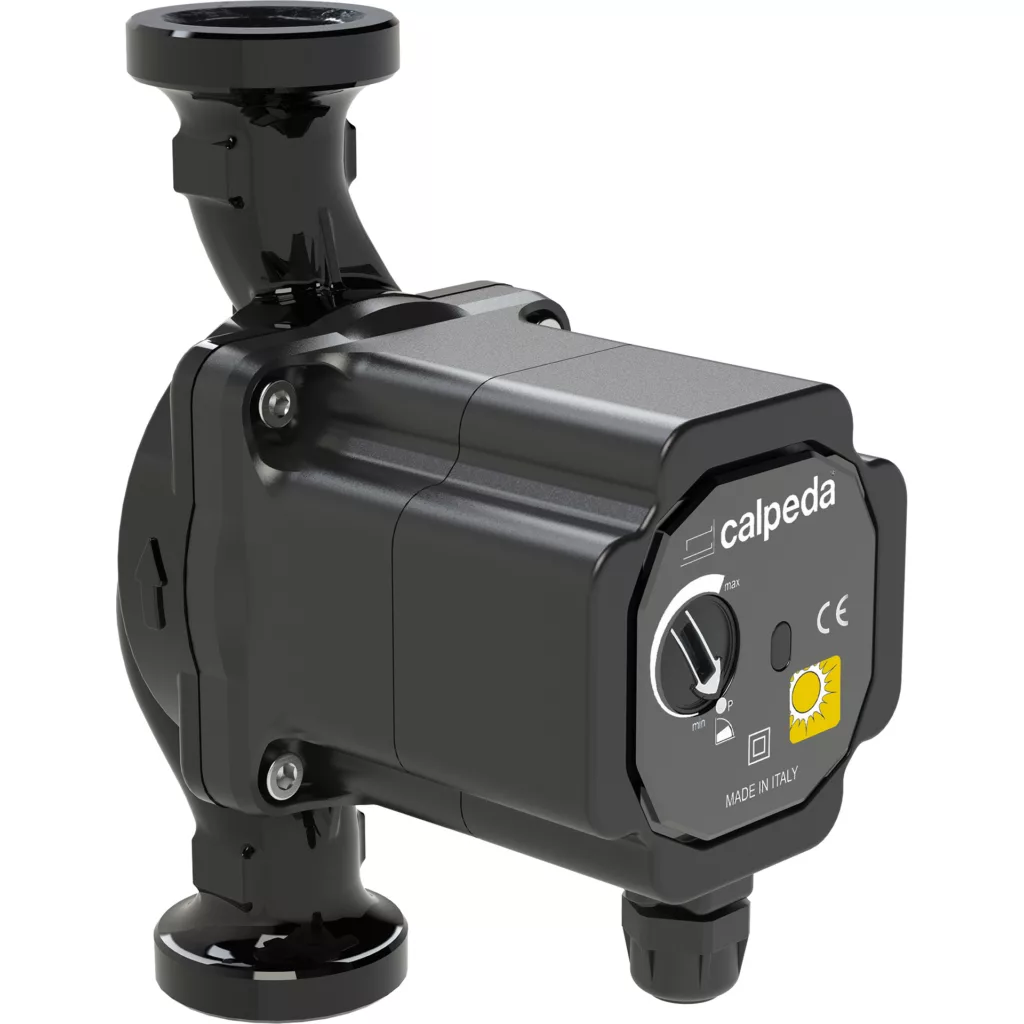

NCE EL

Energy saving circulating pumps for solar systems with frequency converter

FLOW

0.1 / 4.2
mc / h

HEAD

0.2 / 6.8
m

POWER

0.003 / 0.056
kW
Execution

Energy saving variable speed circulating pump driven by a permanent magnet synchronous motor (pm) controlled by on board inverter.

Applications

Solar thermal systems.

Operating conditions

Liquid temperature from +2 °C to +110 °C
– Ambient temperature from 0 °C to +40 °C
– Maximum permissible working pressure: 10 bar
– Storage: -20°C/+70°C max. relative humidity 95% at 40 °C
– Certifications: in conformity with CE requirements
Sound pressure ≤ 43 dB (A).
Pressione minima in aspirazione: 0,3 bar a 50 °C, 1,0 bar a 95 °C, 1,5 bar a 110 °C
Maximum glycol quantity: 40%
– EMC according to: EN 55014-1, EN 61000-3-2, EN 55014-2
– Connections: threaded ports ISO 228: G 1, G 1 1/2, G 2
– Minimun power: 3 W.

Motor

Synchronous motor with permanent magnet.
– Motor: variable speed
– Standard voltage: single-phase 230 V (-10%;+6%)
– Frequency: 50/60 Hz
– Protection: IP 44
– Insulation class: H
– Class II appliance
– Overload protection (integrated).
1) automatic protection with electronic rotor release
2) Overload thermal protector
– Cable: phases and neutral.
Constructed in accordance with EN 60335-1, EN 60335-2-51.
