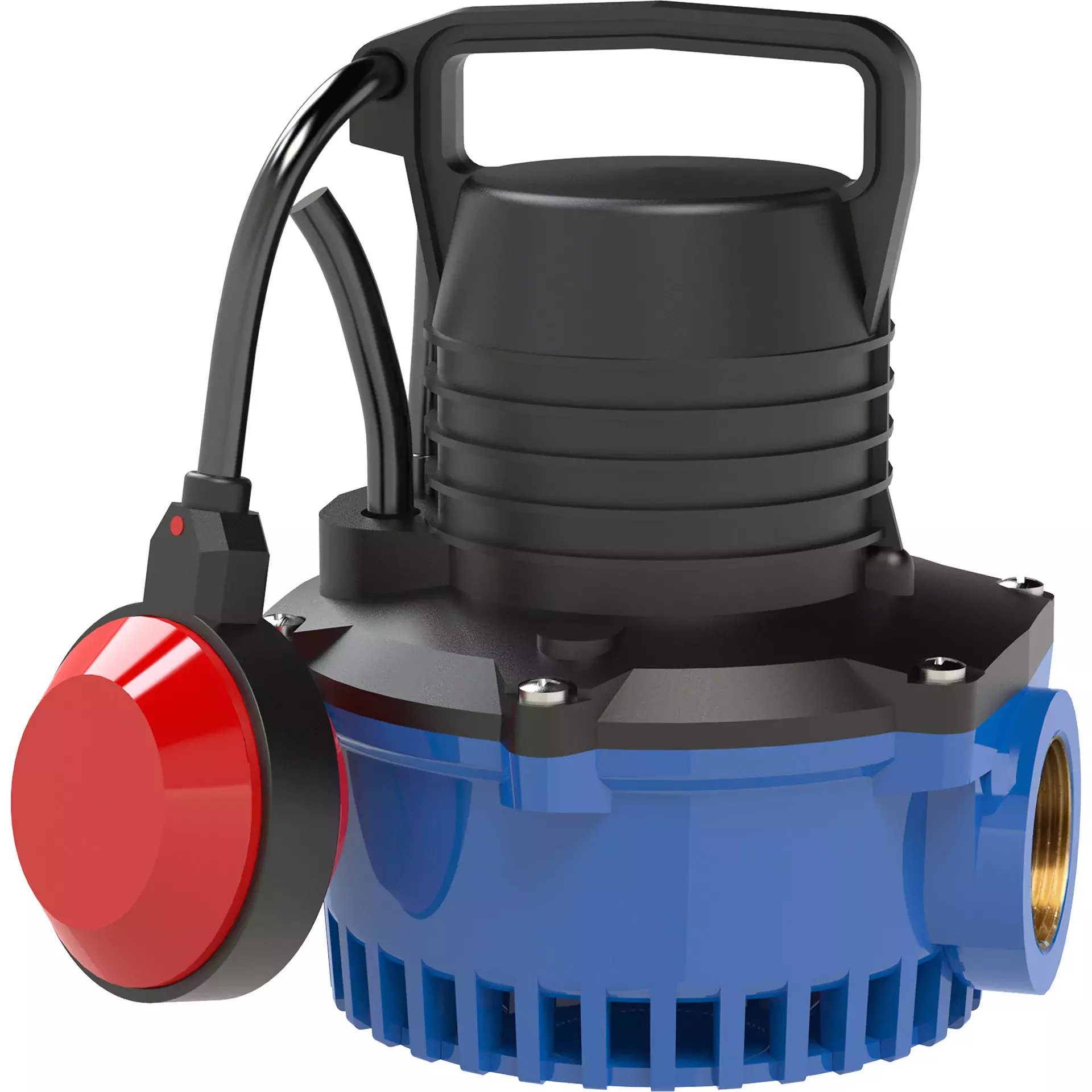

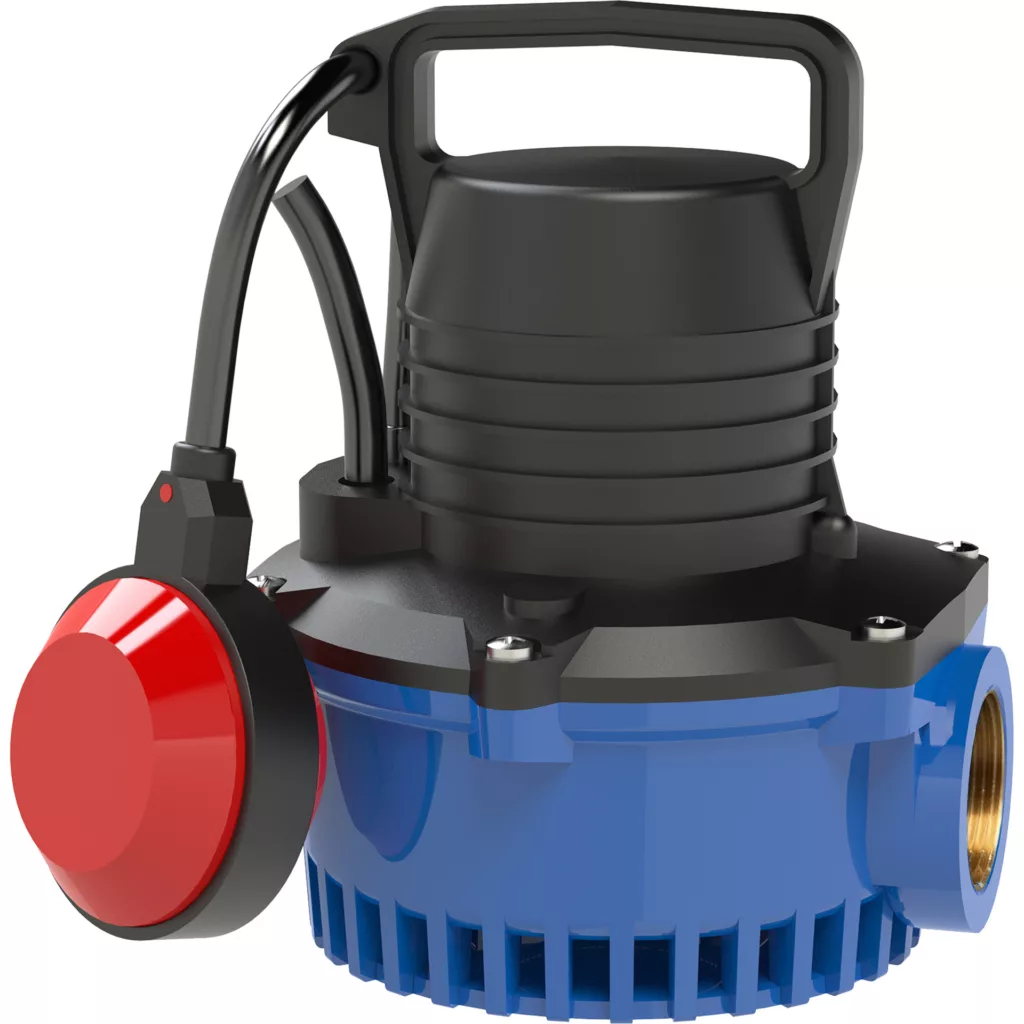

GM10
Submersible drainage pump
FLOW
3 / 12
mc / h
HEAD
2.2 / 7.5
m
POWER
0.3
kW
Execution
Submersible drainage pump constructed with composite polymers developed especially for this product.
These new rustproof materials are resistant to corrosion, indeformable at maximum temperature differentials in the pump and motor and resistant to internal and external strain.
Shaft of chrome steel AISI 430. Three lip seals in NBR.
Minimum dimension and high levels of performance, for use in many different applications, for flow rates up to 200 liters/min. With float switch for automatic start/stop.
Applications
– For clean or slightly dirty water.
– For draining flooded rooms or tanks.
– Extraction of water from ponds, flowing water or pits for collection of rain water.
– For irrigation purposes.
– For use outdoor, the power supply cable shall have a length not less than 10 m.
Operating conditions
Maximum liquid temperature for prolonged use: 35 °C (with immersed motor).
Immersion depth: 5 m max (with suitable cable length).
Not suitable for continuous duty for prolonged time.
Motor
2-pole induction motor, 50 Hz (n ≈ 2900 rpm).
Single-phase 230 V ± 10%, with thermal protector.
Capacitor inserted in the housing incorporated in the plug.
Cable: with plug, length 5 m, 245IEC57 4 G 0,75 mm2, according to EN 60335-2-41 for pumps up to 5 kg.
Insulation class B.
Protection IP X8.
Triple impregnation humidity-proof dry winding
Case History
Case History
I am raw html block.
Click edit button to change this html
Related products
 |
||
 |
 |
 |
 |
 |
 |

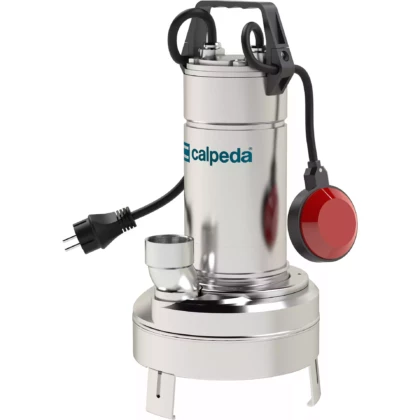

 GX 40Stainless steel submersible pumps sewage and drainage FLOW3 / 36mc / hHEAD3 / 12.9mPOWER0.55 / 1.2kW |
 |

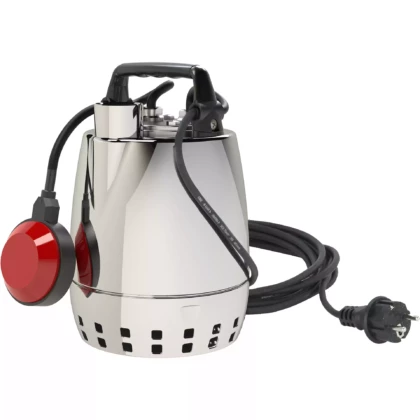

 GXR, GXVStainless steel submersible pumps FLOW1.2 / 13.2mc / hHEAD1.7 / 12.7mPOWER0.25 / 0.6kW |
