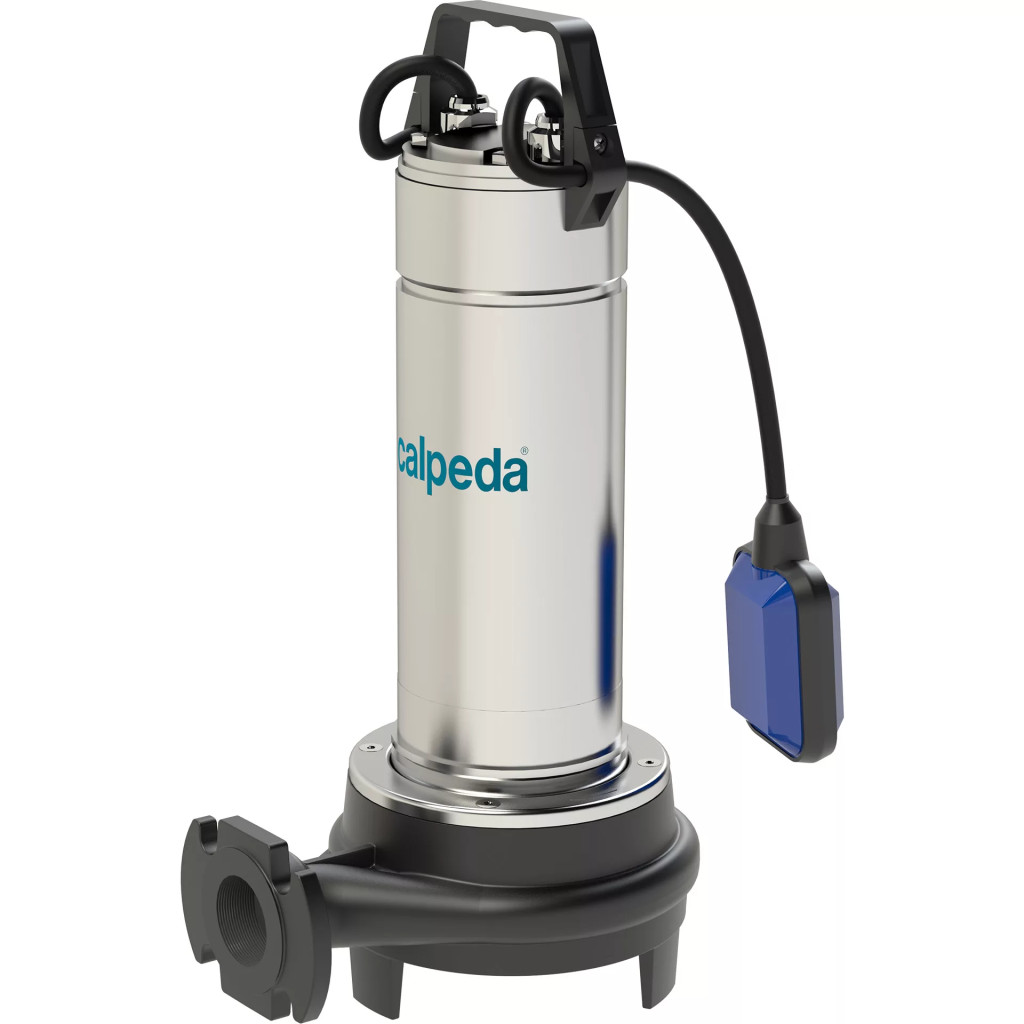

GQG
submersible pumps con sistema trituratore
FLOW
3 / 17
mc / h
HEAD
4 / 25
m
POWER
0.9 / 1.5
kW
Execution
Submersible pumps with high power grinder, with horizontal flanged and threaded delivery port (DN 32 – G 1 1/2”).
Double mechanical shaft seal with interposed oil chamber, to protect against dry-running.
Applications
To move water containing long filamentary materials, paper or textile material.
They are particularly suitable for use in domestic, residential and industrial installations
Solid passage Ø 6 mm
Operating conditions
Liquid temperature up to 35° C.
Maximum immersion depth: 5 m.
Minimum immersion depth: 300 mm.
Continuous duty (with submerged motor).
Motor
Motore a induzione a 2 poli, 50Hz (n ≈ 2900 1/min).
GQG: three-phase 230V ± 10%
400V ± 10%
GQGM: single-phase 230V ± 10%
Con interruttore e galleggiante, termoprotettore e quadro di comando con condensatori di avviamento.
Cavo H07RN-F, 4G1 mm², (4G1,5 mm² per GMGM 6-25), lunghezza 10 m.
Insulation class F.
Protection IP X8 (for continuous immersion).
Triple impregnation humidity-proof dry winding
Constructed in accordance with EN 60034-1, EN 60335-1, EN 60335-2-41.
