GM 10-8
Submersible drainage pump
FLOW
1.2 / 14
mc / h
HEAD
1 / 7
m
POWER
0.25
kW
,
Execution
Submersible drainage pump constructed with composite polymers developed especially for this product.
Double shaft seal with oil chamber.
Small dimensions and great performance, for use in a wide variety of applications, for flow rates up to 233 litres per minute.

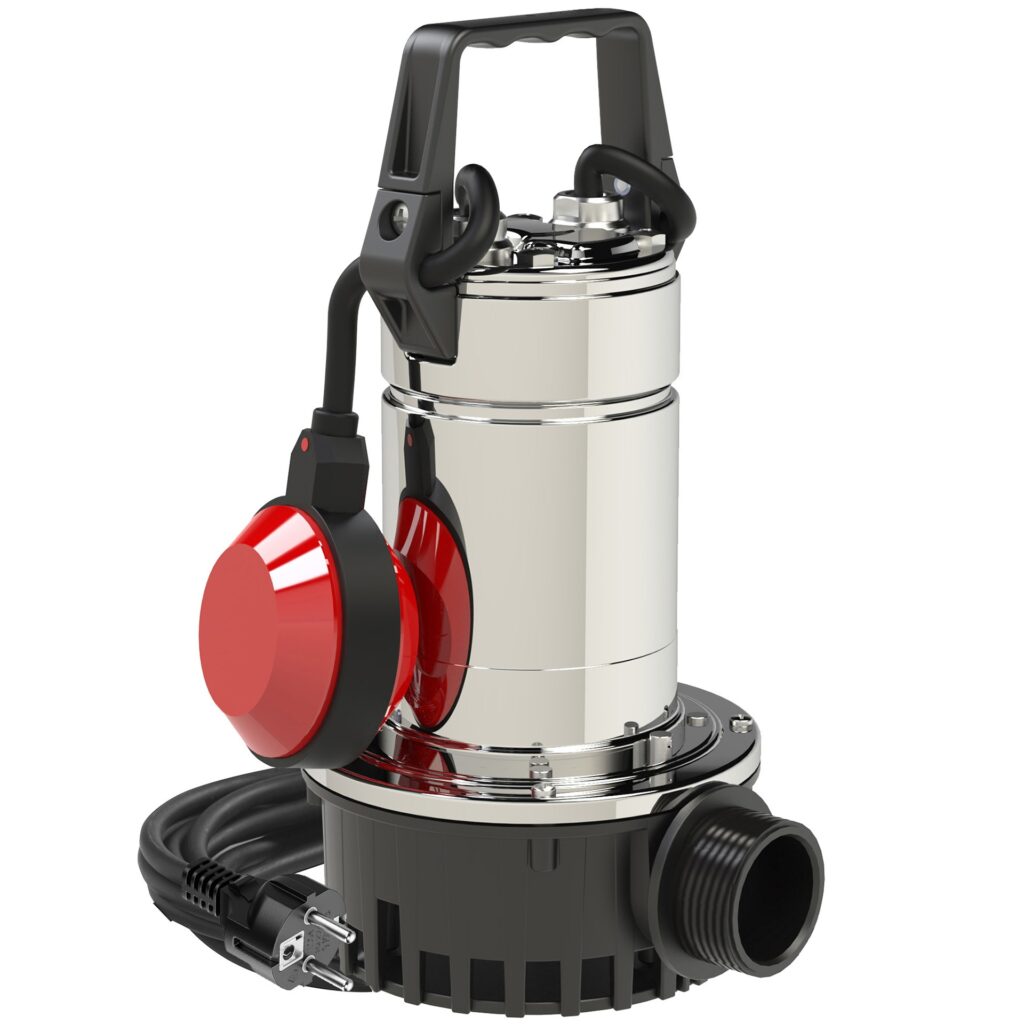

With float switch for automatic start and stop.
Applications
– For clean or slightly dirty water.
– For draining flooded rooms or tanks.
– Extraction of water from ponds, flowing water or pits for collection of rain water.
– For irrigation purposes.
– For use outdoor, the power supply cable shall have a length not less than 10 m.
Operating conditions
Maximum liquid temperature for prolonged use: 35 °C (with immersed motor).
Immersion depth: 5 m max (with suitable cable length).
Continuous duty
Motor
2-pole induction motor, 50 Hz (n ≈ 2900 rpm).
Single-phase 230 V ± 10%, with thermal protector.
Incorporated capacitor
H05RN-F cable, 3G0.75 mm2, length 5 m, with CEI-UNEL 47166 plug.
Insulation class F.
Protection IP X8.
Double impregnation humidity-proof dry winding.
