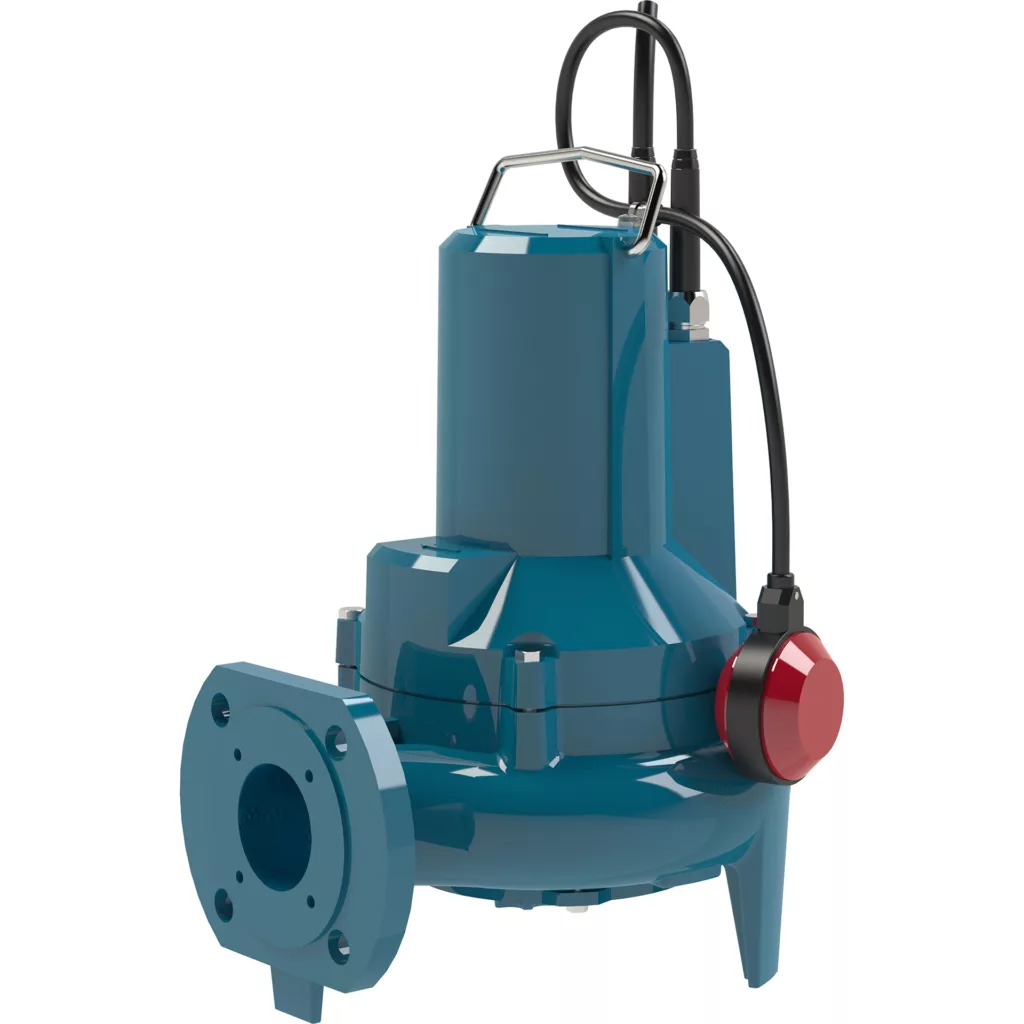

GM 50

Submersible sewage and drainage pumps

FLOW

6 / 48
mc / h

HEAD

1 / 17.3
m

POWER

0.75 / 2
kW
,
Execution

Close coupled electric submersible pumps.
GMC: with single-channel impeller.
GMV: with free-flow (vortex) impeller.
Double mechanical shaft seal with interposed oil chamber, to protect against dry-running.

Applications

For domestic or industrial waste water, dirty water with solids up to 45 mm grain size for GMC and 50 mm for GMV, for liquids which are compatible with the pump materials.

Operating conditions

Maximum liquid temperature: 35 °C
pH value: 6-11.
Maximum immersion depth: 10 m (with suitable cable length).
Continuous duty (with submerged motor).

Motor

Motore a induzione a 2 poli, 50Hz (n ≈ 2900 1/min).
GMC, GMV: three-phase 230V ± 10%
400V ± 10%
2 built-in thermal protectors to be connected to a control box.
Cavo H07RN-F, 4G1,5 mm²+2×0,5 mm², lunghezza 10 m, senza spina.
GMCM, GMVM: single-phase 230V ± 10%
with float switch and thermal protector.
Incorporated capacitor
Cavo H07RN-F, 3G1,5 mm², lunghezza 10 m, con spina CEI-UNEL 47166.
Insulation class F.
Protection IP X8 (for continuous immersion).
Triple impregnation humidity-proof dry winding
Constructed in accordance with EN 60034-1, EN 60335-1, EN 60335-2-41.
