GEOTRIT-GEOCLEAN-GEOCOMP
Macerating pumping system
,
,
Execution
GEOCLEAN
GEOCLEAN makes the addition of a domestic kitchen or utility room easy even when below or distant from a drain.
The system has a clapet valve and it cannot be used with waste waters.
GEOCLEAN is provided with flexible sleeves, elbow, metal hose clips, plugs.

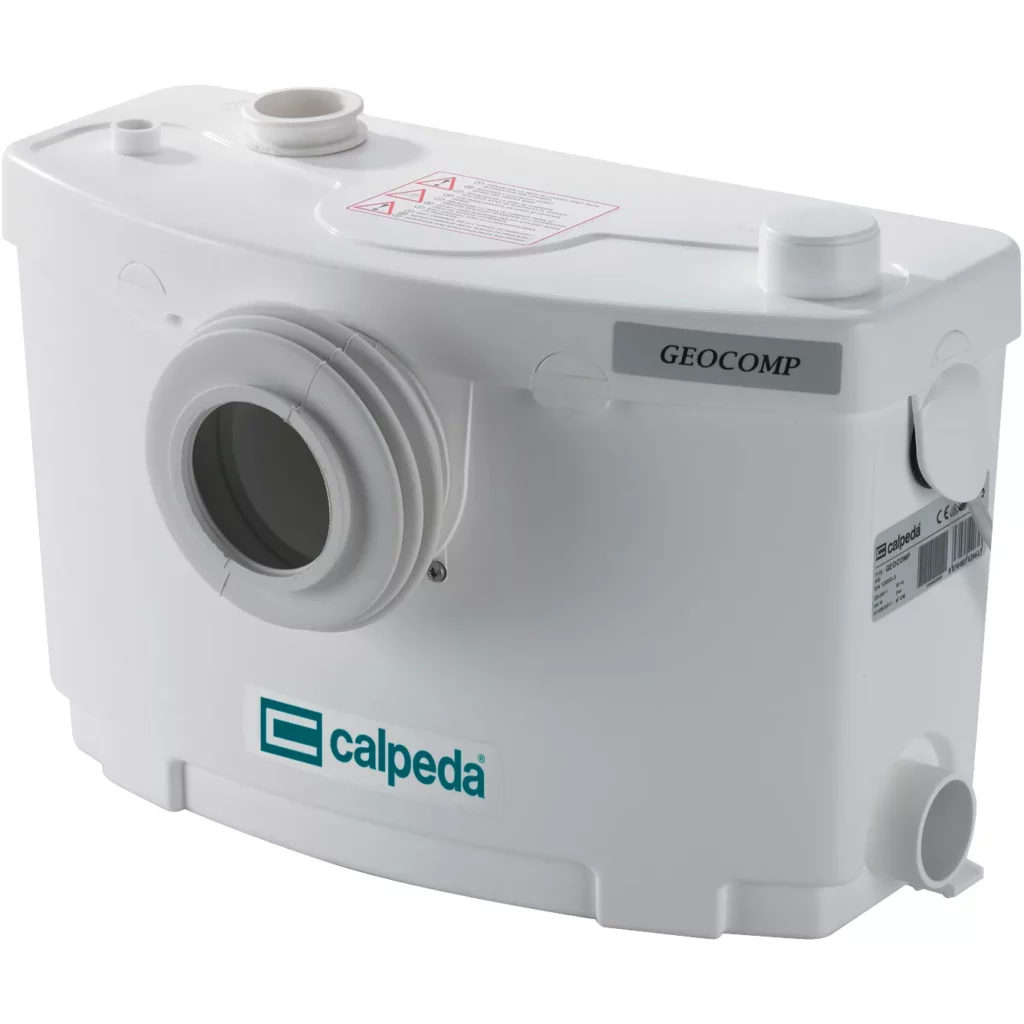

GEOCOMP
Macerating pumping system. It is possible to install a complete bathroom in a basement conversion or loft extension.
The GEOCOMP macerating system is installed in a case specifically designed for horizontal outlet spigots.
Installed and used correctly, this unit will give consistent and reliable service.
The system has a grinder pump, clapet valve and carbon filter.
GEOCOMP is provided with flexible sleeves, elbow, metal hose clips.

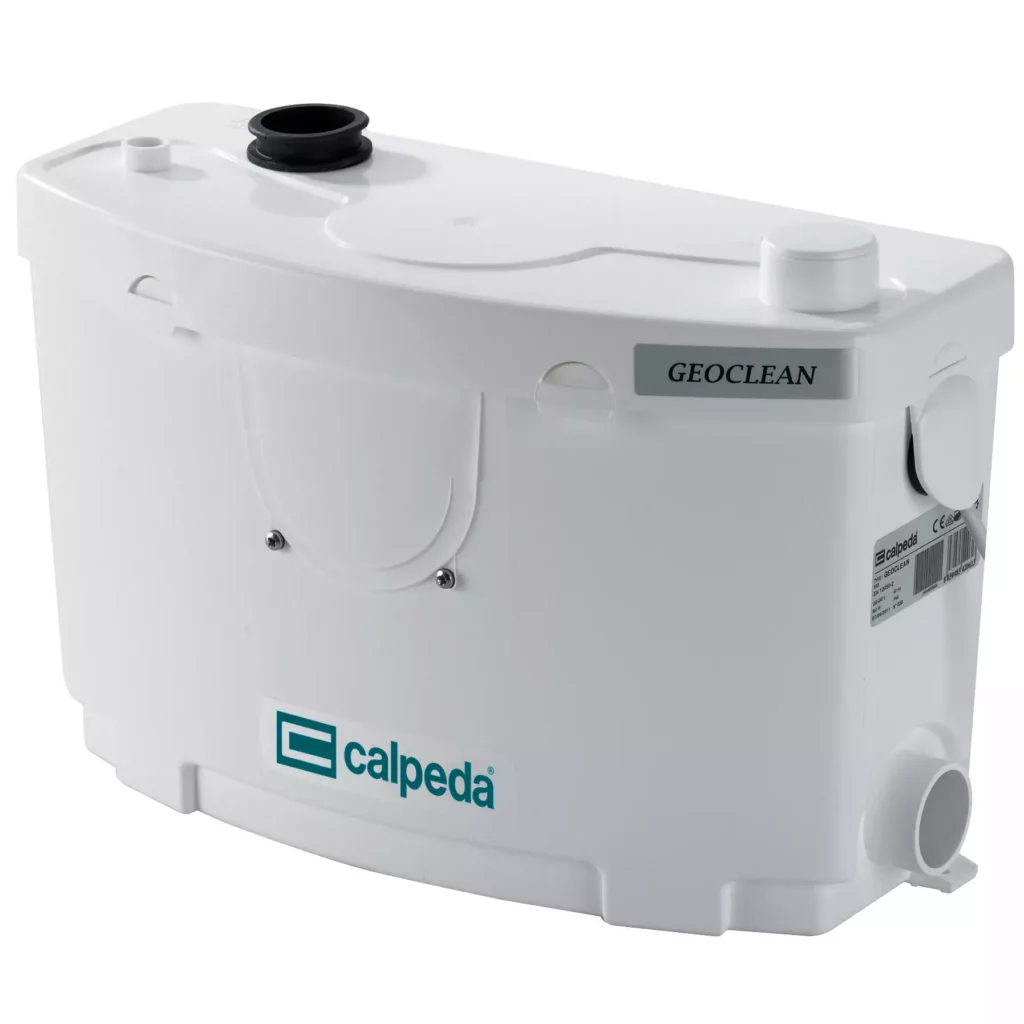

GEOCLEAN
Lifting station for clean water.
GEOCLEAN makes the addition of a domestic kitchen or utility room easy even when below or distant from a drain.
The system has a clapet valve and it cannot be used with waste waters.
GEOCLEAN is provided with flexible sleeves, elbow, metal hose clips, plugs.
Applications
GEOTRIT takes waste from a WC and a washbasin.
GEOCOMP has been designed to pump away the waste water from WC, washbasin, bidet, tube and shower.
GEOCLEAN is design to handle the evacuation water from a domestic kitchen sink, dishwasher and washing machine – all working at the same time if required. GEOCLEAN also takes waste from a washbasin, a bidet, a tube and a shower.
Operating conditions
Voltage: 220-240 V
Frequency: 50 Hz
Degree of protection: IP44
Maximum power rating: 400 W
Maximum current consumption: 1,9 A
Vertical pumping: max. 4 m
Liquid temperature up to 35 °C
